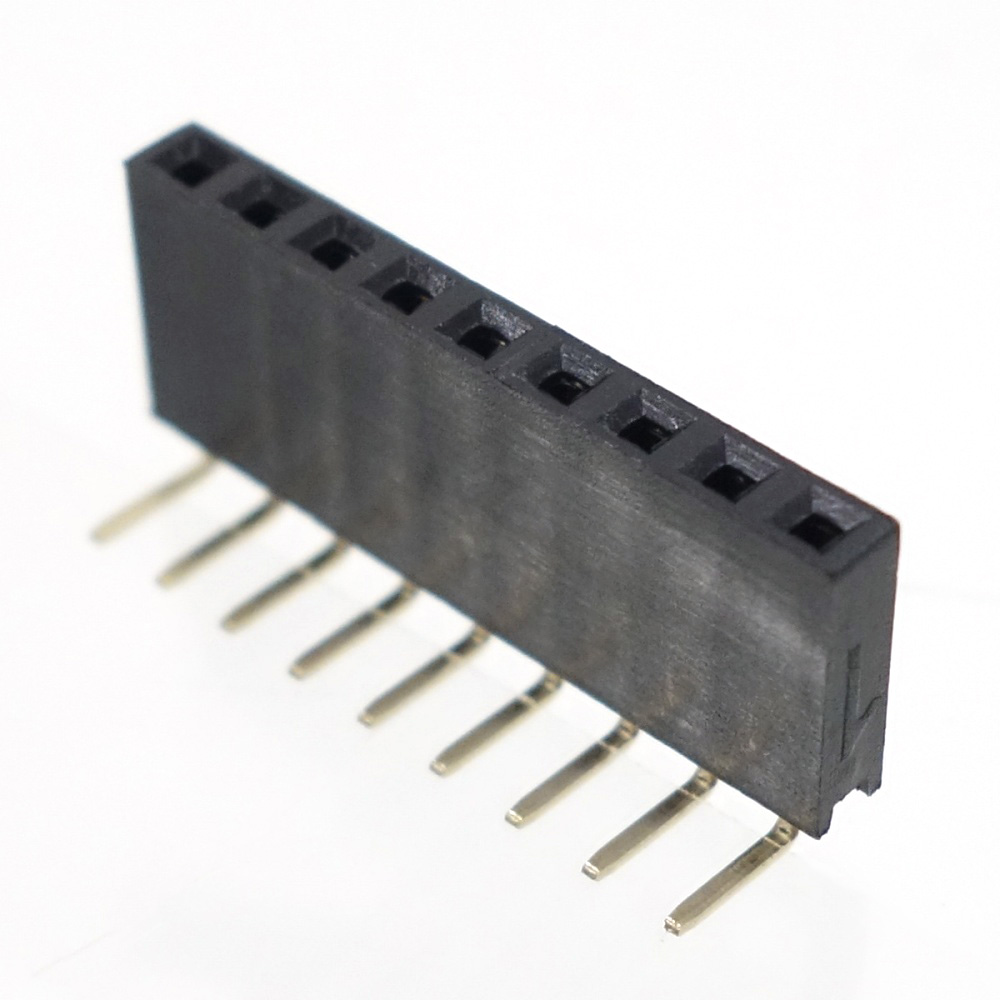

21601X09RE

$0.86

Description：CONN RCPT 9POS 0.1 PCB R/A
Series：-
Mfr：Marutsuelec
Package：Bulk

SKU:b2bef4b93f7e Category: Headers, Receptacles, Female Sockets Brand: Marutsuelec

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

21601X09RE is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Marutsuelec. Its product description is CONN RCPT 9POS 0.1 PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 21601X09RE

Description：CONN RCPT 9POS 0.1 PCB R/A
Series：-
Mfr：Marutsuelec
Package：Bulk
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：9
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：0.100" (2.54mm)
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：-
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：-
Contact Length - Post：-
Operating Temperature：-55°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：-
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 21601X09RE

21601X09RE

Headers, Receptacles, Female Sockets Overview

The 21601X09RE is a 9-position receptacle connector featuring female sockets. It is designed for header applications and operates within a temperature range of -55°C to 105°C. The component housing utilizes material with a UL94 V-0 flammability rating, ensuring compliance with safety standards for electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

Provides secure electrical connections via female socket configuration
Operates reliably across extended industrial temperature ranges
Constructed with UL94 V-0 rated flame-retardant materials

Headers, Receptacles, Female Sockets Applications

Header assembly integration
Industrial control panel wiring
Electronic module interconnection

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific manufacturer origin and current production status before ordering. Confirm that the UL94 V-0 rating and temperature specifications align with your system's environmental requirements. Ensure compatibility with mating header pins regarding pitch and contact configuration.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 9-position female receptacle is required for board-to-board or cable-to-board connections. Consider the -55°C to 105°C operating range for suitability in harsh environments. Validate mechanical fit and flammability ratings against project specifications.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the category of headers, receptacles, and female sockets. It serves as a passive interconnect component within larger electronic systems, facilitating signal and power transmission between circuit boards or cables and main assemblies.
