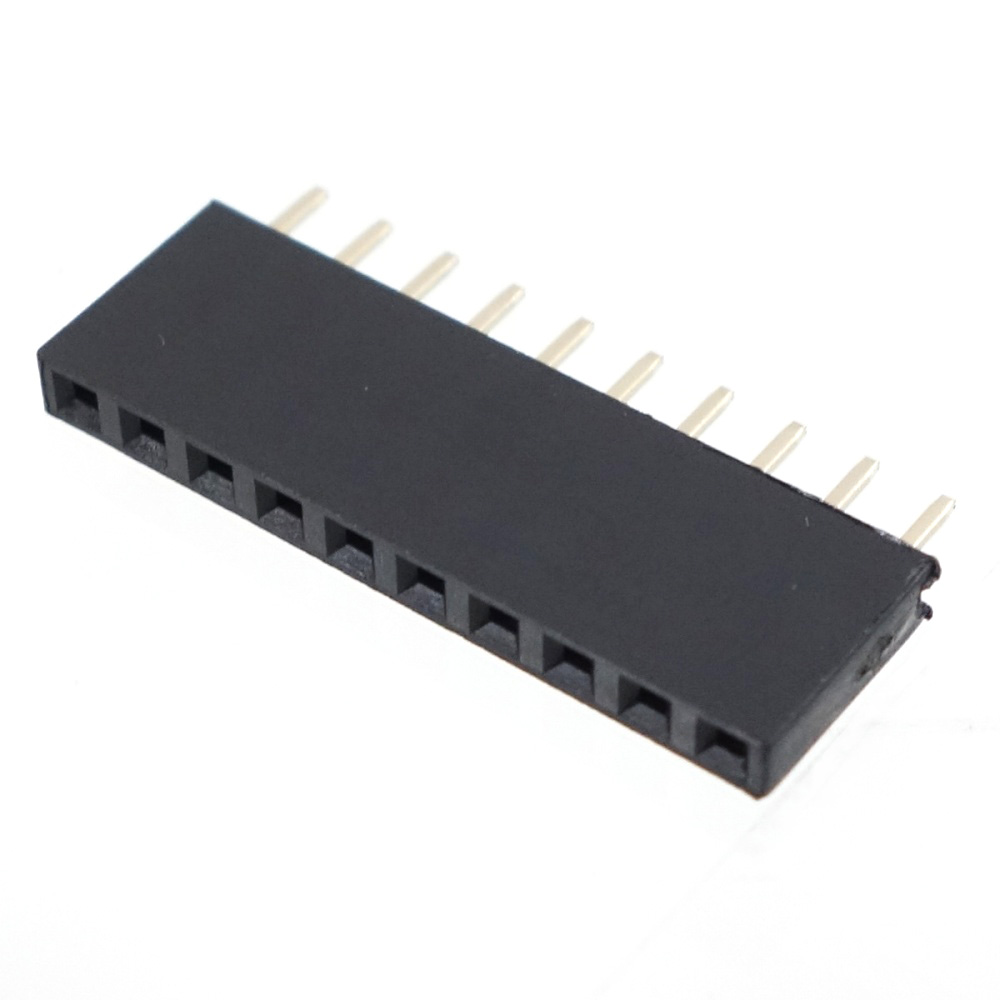

21601X10GSE is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Marutsuelec. Its product description is CONN RCPT 10POS 0.1 PCB. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for 21601X10GSE
- Description：CONN RCPT 10POS 0.1 PCB
- Series：-
- Mfr：Marutsuelec
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：10
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：1
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Insulation Color：Black
- Insulation Height：-
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：-
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：1A
- Voltage Rating：-
Headers, Receptacles, Female Sockets datasheet and documents for 21601X10GSE
Headers, Receptacles, Female Sockets Overview
The 21601X10GSE is a 10-position receptacle connector manufactured by Marutsuelec. It utilizes a through-hole mounting style for secure PCB attachment. The component operates within a temperature range of -55°C to 105°C. It features a material flammability rating compliant with standard safety classifications.
Headers, Receptacles, Female Sockets Feature Summary
- Provides a 10-position connection interface for circuit integration
- Designed for reliable through-hole mounting on printed circuit boards
- Constructed with materials rated for specified thermal and flammability standards
Headers, Receptacles, Female Sockets Applications
- General electronic assembly requiring multi-pin connectivity
- Industrial control systems utilizing through-hole components
- Consumer electronics manufacturing processes
Headers, Receptacles, Female Sockets Procurement Notes
Verify the specific manufacturer designation, as Marutsuelec often acts as a distributor for other brands. Confirm that the part number corresponds to the intended 10-position receptacle configuration. Ensure compatibility with existing board layouts and hole specifications before finalizing orders.
Headers, Receptacles, Female Sockets Selection Notes
Select this component when a 10-position through-hole receptacle is required. Consider the operating temperature range of -55°C to 105°C for environmental suitability. Verify mechanical fit and electrical requirements against system design specifications.
Headers, Receptacles, Female Sockets Part Context
This part belongs to the header and receptacle connector category. It serves as a critical interconnection element in electronic assemblies. The through-hole design offers robust mechanical stability compared to surface-mount alternatives.
Headers, Receptacles, Female Sockets Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer catalogs or authorized distributors for verified cross-reference data.
