21601X2GSE

Headers, Receptacles, Female Sockets Overview

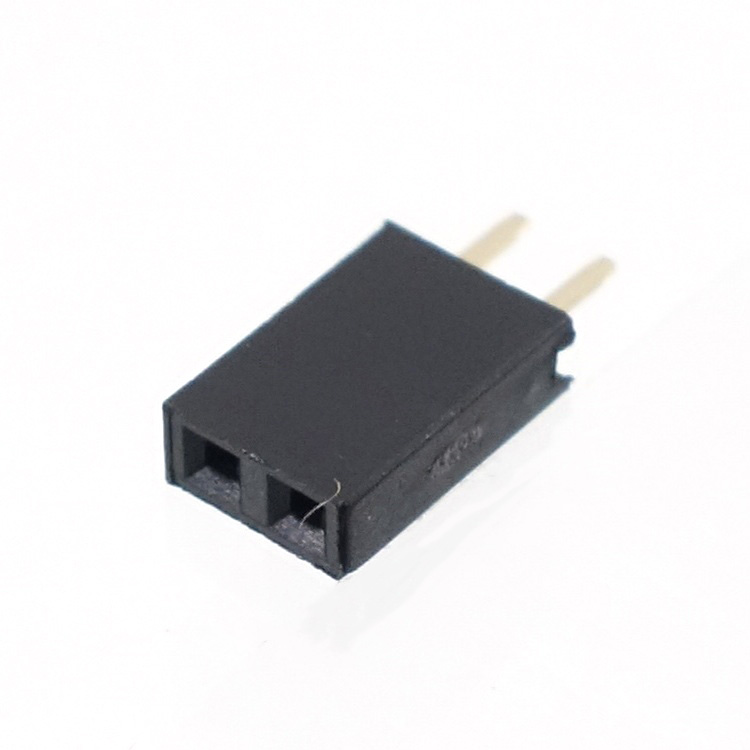

The Marutsuelec 21601X2GSE is a 2-position receptacle connector designed for through-hole mounting. It features female sockets with a pin spacing of 0.100 inches (2.54mm). This component serves as a header interface for electronic assemblies requiring reliable signal or power connections.

Headers, Receptacles, Female Sockets Feature Summary

• Through-hole mounting configuration for secure board attachment
• Female socket design for mating with male pins
• Standard 0.100 inch (2.54mm) pitch spacing

Headers, Receptacles, Female Sockets Applications

• General purpose electronic circuit boards
• Signal interconnection headers
• Power supply input interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific manufacturer datasheet to confirm mechanical dimensions and material specifications. Ensure compatibility with mating male pin headers regarding pitch and contact plating. Check for any RoHS compliance documentation required for your assembly process.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 2-position through-hole female header is required. The 2.54mm pitch is standard for many consumer and industrial electronics. Consider the current rating and voltage limits specified in the official documentation before integration into high-power circuits.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the series of rectangular connectors manufactured by Marutsuelec. These components are typically used in conjunction with matching male counterparts to create detachable connections between PCBs or cables and the main board.
