21601X40GSE

Headers, Receptacles, Female Sockets Overview

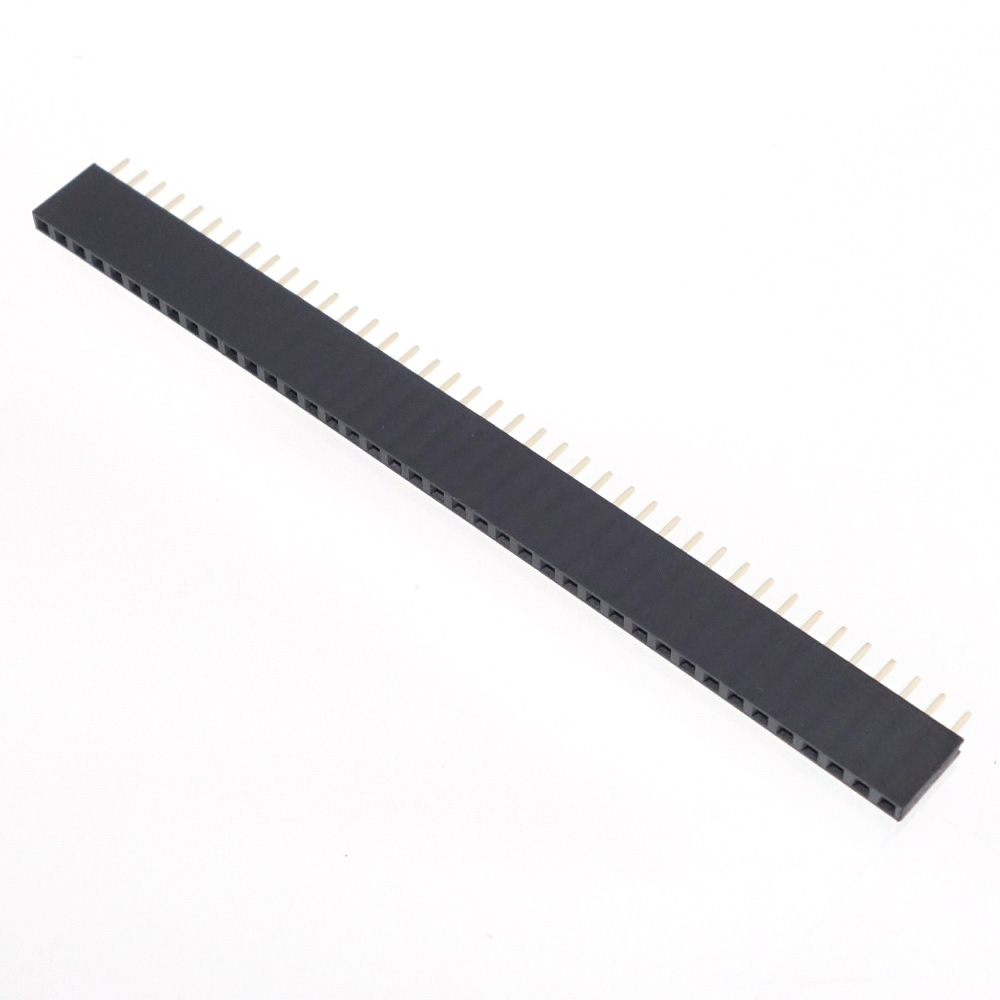

The Marutsuelec 21601X40GSE is a 40-position header receptacle connector designed for through-hole mounting. It features female sockets with a 0.100-inch (2.54mm) pin spacing, providing a reliable interface for board-to-board or cable-to-board connections. This component is part of the standard pin socket series intended for general electronic applications requiring secure signal transmission.

Headers, Receptacles, Female Sockets Feature Summary

• Through-hole mounting configuration for stable PCB attachment
• Female socket design compatible with male pin headers
• Standard 0.100 inch (2.54mm) pitch for universal compatibility

Headers, Receptacles, Female Sockets Applications

• General electronic circuit interconnections
• Board-to-board signal routing
• Prototyping and development boards

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific manufacturer datasheet to confirm material specifications, current ratings, and insulation resistance values before integration. Ensure the selected variant matches the required contact plating and housing color codes if aesthetic consistency is necessary for the assembly. Cross-reference official documentation for environmental compliance status.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 40-position female receptacle with 2.54mm pitch is required for through-hole assembly. Consider mechanical retention needs and mating cycle durability relative to the application environment. Evaluate space constraints on the PCB layout to ensure adequate clearance for the connector height and adjacent components during installation.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Marutsuelec header and socket family, which provides standardized interconnection solutions for various electronic systems. The 21601X series typically offers robust mechanical stability and consistent electrical performance, serving as a fundamental passive component in larger assemblies requiring structured signal pathways.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other 40-position, 2.54mm pitch female headers from manufacturers such as Samtec, Molex, or Hirose. Verify that alternative parts match the exact row count, pin spacing, and mounting style to ensure physical and electrical interchangeability without redesigning the PCB footprint.
