21601X4GSE

Headers, Receptacles, Female Sockets Overview

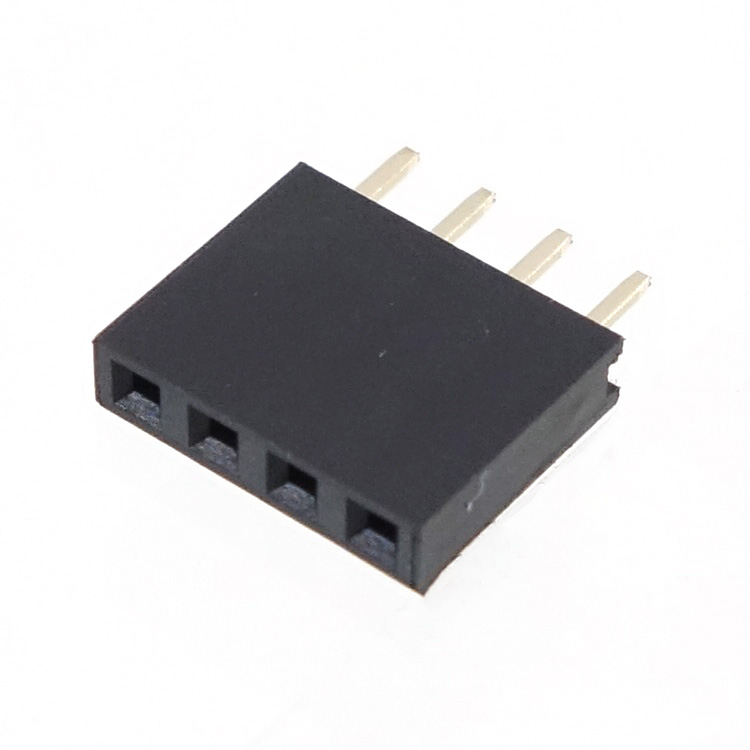

The Marutsuelec 21601X4GSE is a 4-position receptacle connector designed for through-hole mounting. It features a 0.100-inch (2.54mm) pin spacing, providing reliable electrical interconnection in printed circuit board assemblies. The component utilizes a standard header configuration suitable for various electronic applications requiring secure mechanical and electrical contact.

Headers, Receptacles, Female Sockets Feature Summary

• Through-hole mounting technology for robust PCB attachment
• 4-position receptacle design for multi-pin connectivity
• 0.100 inch (2.54mm) pitch for standard header compatibility

Headers, Receptacles, Female Sockets Applications

• General purpose electronic circuit interconnections
• Printed circuit board assembly headers
• Industrial control panel wiring

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific manufacturer datasheet to confirm material composition, plating specifications, and mating force requirements. Ensure the selected variant matches the intended current rating and voltage classification for the target application environment. Cross-reference with official distributor catalogs for accurate part identification before ordering.

Headers, Receptacles, Female Sockets Selection Notes

Select this component based on the required number of positions and the need for through-hole installation. Confirm that the 2.54mm pitch aligns with the corresponding header or cable assembly. Evaluate the mechanical stability provided by the through-hole design against surface-mount alternatives for vibration resistance needs.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to the family of standard board-to-board or wire-to-board connectors. It serves as a critical interface point in electronic systems, facilitating modular connections between different circuit segments or external cabling harnesses.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes must match the 4-position count, 2.54mm pitch, and through-hole termination style. Verify housing material and contact plating equivalence to ensure mechanical and electrical performance parity.
