21601X5GSE

Headers, Receptacles, Female Sockets Overview

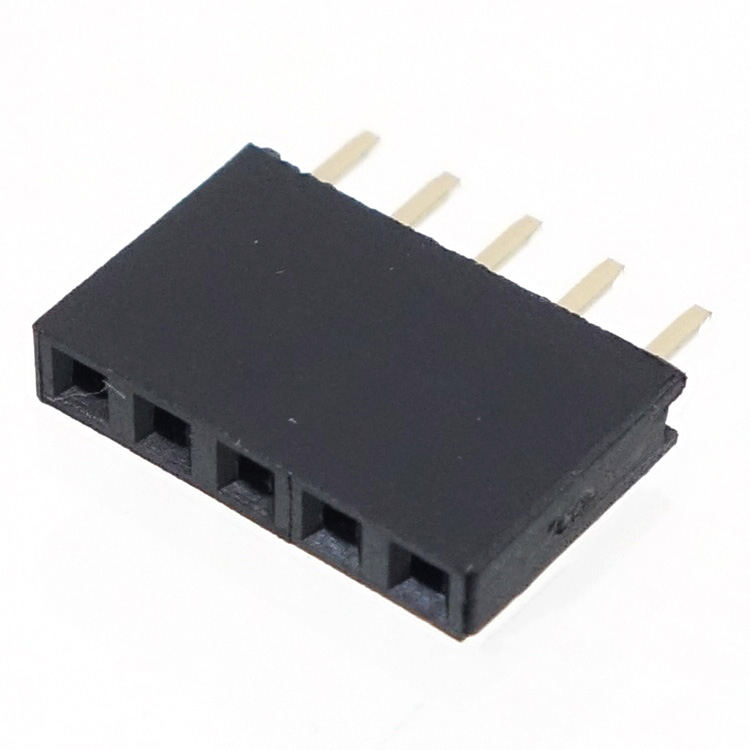

The Marutsuelec 21601X5GSE is a through-hole header receptacle connector designed for secure board-to-board or cable-to-board interconnections. It features a five-position configuration with a standard 0.100-inch (2.54mm) pitch, ensuring compatibility with common PCB layouts and mating headers. The component utilizes a gold-plated contact finish to maintain reliable signal transmission and resist corrosion over time. Constructed with a thermoplastic housing, it offers mechanical stability and electrical insulation suitable for general electronic applications requiring durable, low-profile connections.

Headers, Receptacles, Female Sockets Feature Summary

• Five-position receptacle design for structured multi-signal routing
• Through-hole mounting method ensures robust mechanical attachment to printed circuit boards
• Standard 0.100 inch pitch accommodates widely available mating connectors

Headers, Receptacles, Female Sockets Applications

• General purpose electronic assembly requiring stable signal paths
• Industrial control modules needing reliable through-hole interconnects
• Consumer electronics manufacturing utilizing standard pitch headers

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and pitch against the target application requirements before procurement. Confirm that the housing material and contact plating meet the environmental conditions of the end-use device. Ensure the mating header part number corresponds correctly to this five-position receptacle to guarantee proper alignment and electrical continuity during assembly.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a fixed five-position connection is required on a printed circuit board. The through-hole technology provides superior mechanical strength compared to surface-mount alternatives for high-vibration environments. Consider the 0.100-inch pitch as a standard interface for broad ecosystem compatibility with existing connector libraries.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the series of through-hole header receptacles manufactured by Marutsuelec. These connectors are engineered for standard electronic assemblies where reliable, repeatable connections are necessary. The product line supports various position counts and pitch options, with this specific model addressing the need for a five-position interface in standard spacing configurations.

Headers, Receptacles, Female Sockets Replacement Considerations

Identify compatible substitutes by matching the five-position count, 0.100-inch pitch, and through-hole termination style. Verify that alternative manufacturers offer equivalent contact plating and housing materials to ensure performance parity. Cross-reference the footprint dimensions to confirm physical interchangeability without modifying the existing printed circuit board layout.
