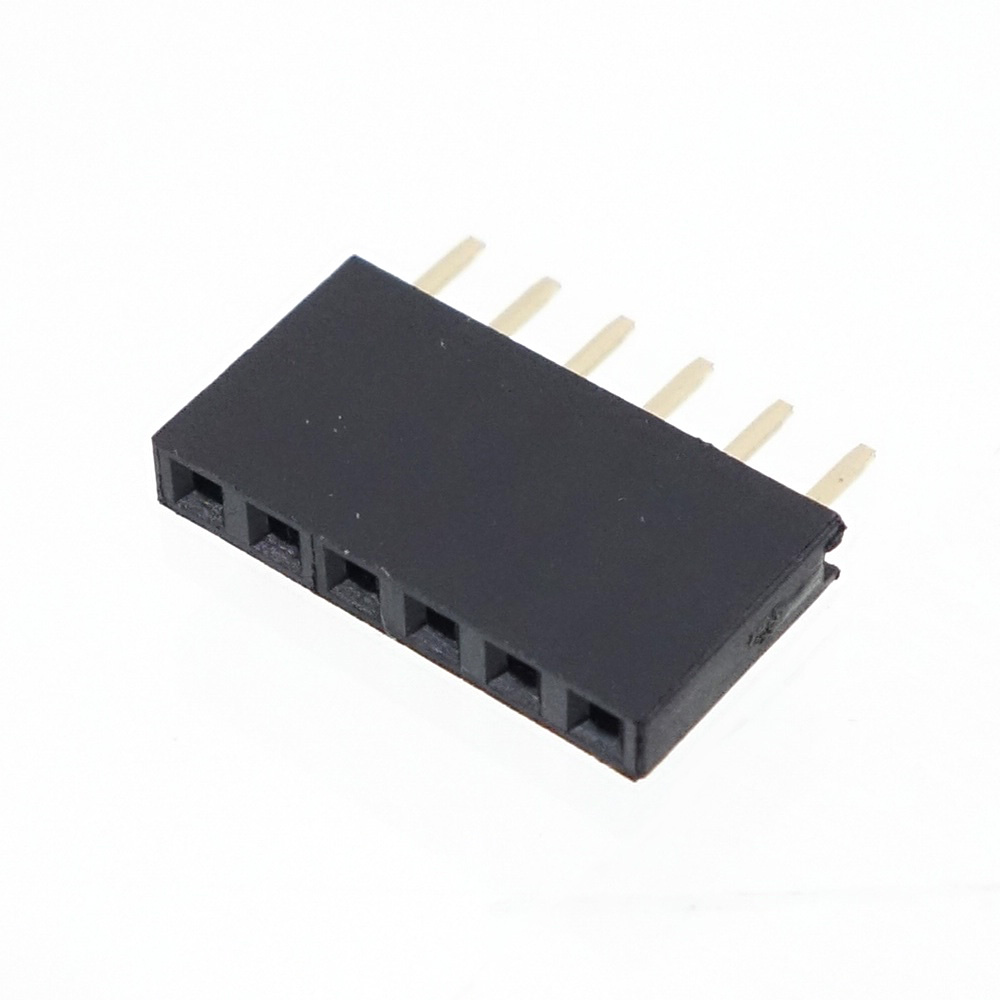

21601X6GSE is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Marutsuelec. Its product description is CONN RCPT 6POS 0.1 PCB. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for 21601X6GSE
- Description：CONN RCPT 6POS 0.1 PCB
- Series：-
- Mfr：Marutsuelec
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：6
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：1
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Insulation Color：Black
- Insulation Height：-
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：-
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：1A
- Voltage Rating：-
Headers, Receptacles, Female Sockets datasheet and documents for 21601X6GSE
Headers, Receptacles, Female Sockets Overview
The Marutsuelec 21601X6GSE is a 6-position receptacle connector designed for through-hole mounting. It features female sockets with a 0.100-inch (2.54mm) pin spacing, ensuring compatibility with standard PCB layouts. This component serves as a board-to-board or wire-to-board interface solution, providing reliable electrical connectivity in electronic assemblies.
Headers, Receptacles, Female Sockets Feature Summary
- Provides secure mechanical and electrical connection via female socket contacts
- Supports through-hole termination for robust PCB integration
- Features standardized 0.100 inch pitch for broad compatibility
Headers, Receptacles, Female Sockets Applications
- Board-to-board interconnect systems
- Wire-to-board assembly connections
- General electronic circuit module interfaces
Headers, Receptacles, Female Sockets Procurement Notes
Verify the specific manufacturer part number against official Marutsuelec documentation to ensure exact match of contact configuration and termination style. Confirm that the through-hole footprint aligns with your PCB design requirements before finalizing procurement orders.
Headers, Receptacles, Female Sockets Selection Notes
Select this component when a 6-position female receptacle with 2.54mm spacing is required for through-hole applications. Ensure the current rating and voltage specifications of the connector meet the system's operational demands and environmental conditions.
Headers, Receptacles, Female Sockets Part Context
This part belongs to the series of headers and receptacles manufactured by Marutsuelec. These components are categorized under board-to-board and wire-to-board connectors, focusing on providing standardized interface solutions for various electronic hardware designs.
Headers, Receptacles, Female Sockets Replacement Considerations
Consult official distributor catalogs for direct substitutes with identical pin count, pitch, and termination type. Verify mechanical dimensions and contact material specifications to ensure functional equivalence without redesigning the host PCB.
