21601X8GSE

Headers, Receptacles, Female Sockets Overview

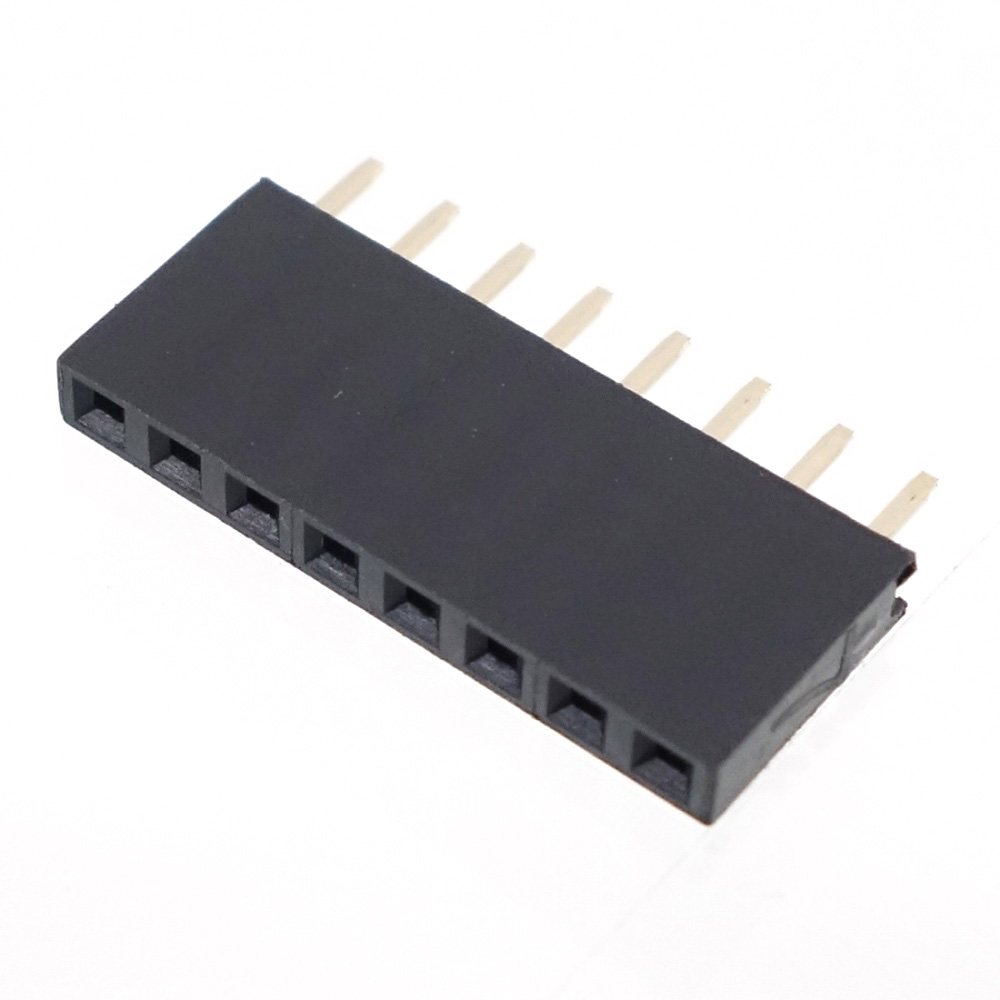

The Marutsuelec 21601X8GSE is an 8-position receptacle connector designed for through-hole mounting. It features a female socket configuration with a standard 0.100-inch (2.54mm) pitch. The component is engineered for reliable electrical connections in printed circuit board applications requiring secure header mating.

Headers, Receptacles, Female Sockets Feature Summary

• Provides an 8-position female socket interface for secure header connection
• Utilizes a 0.100-inch (2.54mm) pitch spacing for standardized alignment
• Supports through-hole mounting technology for robust PCB attachment

Headers, Receptacles, Female Sockets Applications

• General-purpose electronic interconnects
• Header mating assemblies
• Printed circuit board signal routing

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific manufacturer datasheet to confirm mechanical dimensions and material specifications prior to integration. Ensure compatibility with corresponding male headers regarding pin count and pitch. Cross-reference official documentation for environmental ratings and termination requirements to guarantee long-term reliability in the target application environment.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when an 8-channel through-hole receptacle is required. Confirm that the 2.54mm pitch aligns with the design footprint. Validate that the female socket orientation matches the assembly layout. Consider mechanical stability needs for through-hole implementation versus surface mount alternatives.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the series of headers and receptacles manufactured by Marutsuelec. It serves as a passive interconnect element within larger electronic systems, facilitating modular connections between circuit boards or cable assemblies without active signal processing capabilities.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other 8-position, 2.54mm pitch through-hole female sockets from various manufacturers. Verify identical mechanical envelope and contact plating specifications before substitution.
