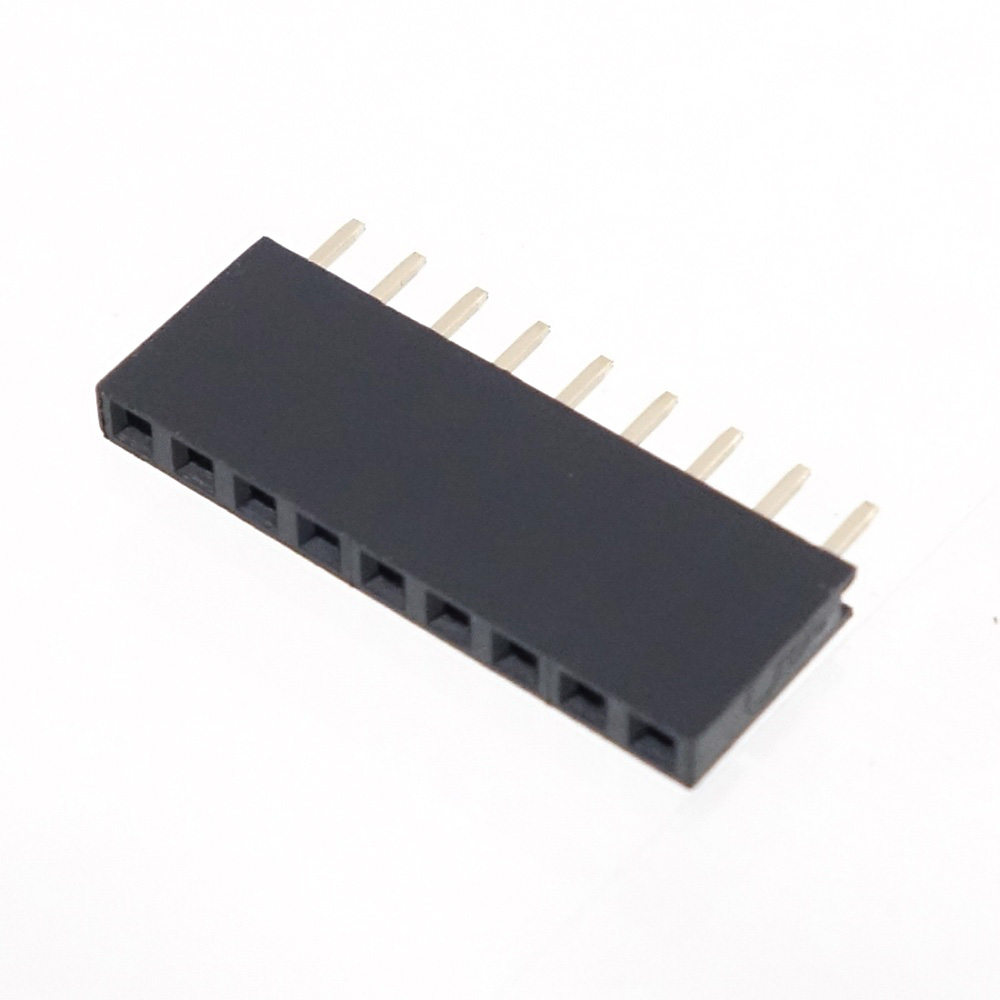

21601X9GSE is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Marutsuelec. Its product description is CONN RCPT 9POS 0.1 PCB. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for 21601X9GSE
- Description：CONN RCPT 9POS 0.1 PCB
- Series：-
- Mfr：Marutsuelec
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：9
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：1
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Insulation Color：Black
- Insulation Height：-
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：-
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：1A
- Voltage Rating：-
Headers, Receptacles, Female Sockets datasheet and documents for 21601X9GSE
Headers, Receptacles, Female Sockets Overview
The Marutsuelec 21601X9GSE is a 9-position receptacle connector designed for through-hole mounting. It features a 0.100-inch (2.54mm) pin spacing to ensure compatibility with standard PCB layouts. The component utilizes female sockets to establish secure electrical connections within circuit assemblies.
Headers, Receptacles, Female Sockets Feature Summary
- Provides 9 contact positions for multi-signal interconnection
- Supports reliable through-hole PCB mounting methods
- Utilizes standardized 0.100-inch pitch for broad compatibility
Headers, Receptacles, Female Sockets Applications
- General-purpose electronic circuit board interconnections
- Industrial control system signal routing
- Consumer electronics assembly modules
Headers, Receptacles, Female Sockets Procurement Notes
Verify the specific manufacturer datasheet for detailed mechanical dimensions and material specifications before integration. Confirm that the through-hole footprint matches the target PCB design requirements. Ensure environmental ratings align with the intended operating conditions of the final application.
Headers, Receptacles, Female Sockets Selection Notes
Select this component when a 9-position interface is required for through-hole implementation. The 2.54mm pitch ensures alignment with common header systems. Evaluate mechanical stability needs against the receptacle's structural design for the specific load environment.
Headers, Receptacles, Female Sockets Part Context
This part belongs to the Marutsuelec headers and receptacles category, specifically focusing on female socket configurations. It serves as a passive interconnect element within larger electronic assemblies, facilitating signal transmission between connected hardware components.
Headers, Receptacles, Female Sockets Replacement Considerations
Cross-reference compatible 9-position receptacles with identical 2.54mm pitch and through-hole termination styles from other manufacturers to ensure mechanical and electrical interchangeability in existing designs.
