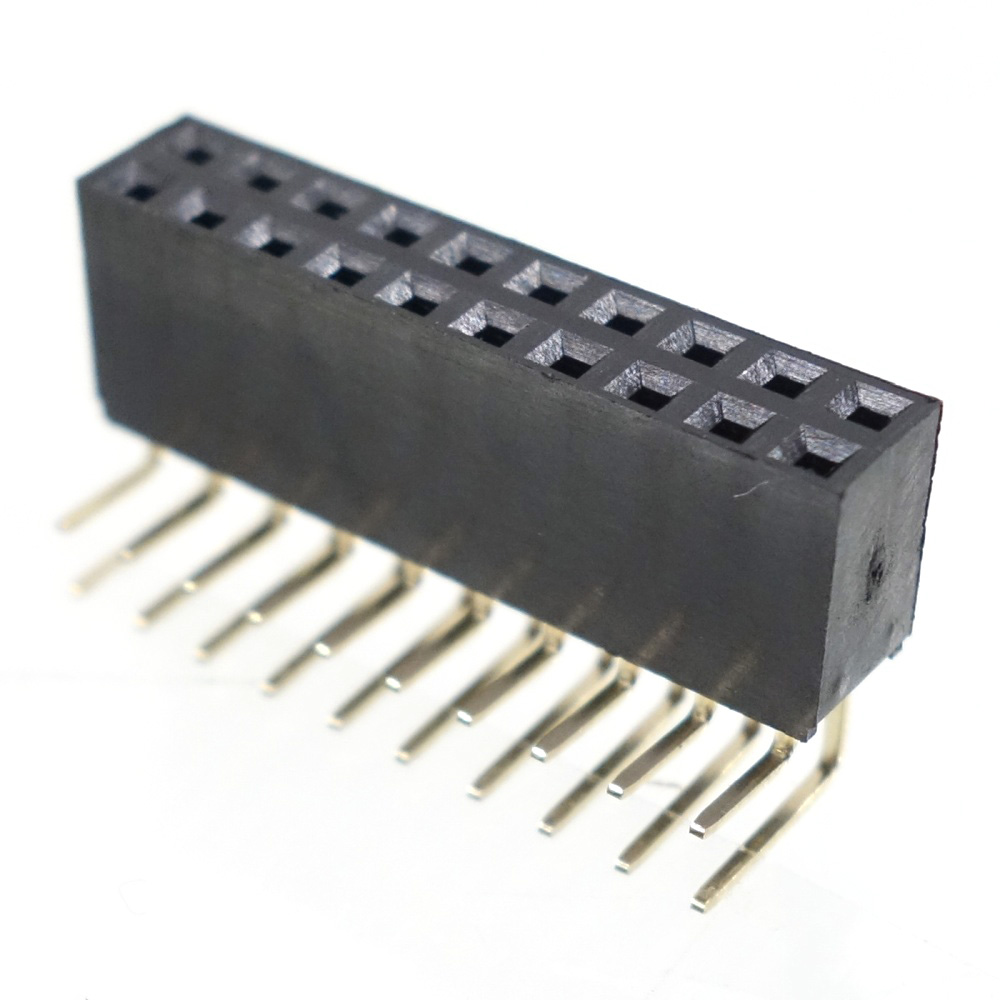

21602X10GRE is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Marutsuelec. Its product description is CONN RCPT 10POS 0.1 PCB R/A. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for 21602X10GRE
- Description：CONN RCPT 10POS 0.1 PCB R/A
- Series：-
- Mfr：Marutsuelec
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：10
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Insulation Color：Black
- Insulation Height：-
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：-
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：1A
- Voltage Rating：-
Headers, Receptacles, Female Sockets datasheet and documents for 21602X10GRE
Headers, Receptacles, Female Sockets Overview
The 21602X10GRE is a 10-position receptacle connector manufactured by Marutsuelec. It features female sockets designed for through-hole mounting on printed circuit boards. The connector utilizes a right-angle configuration to facilitate space-efficient board layouts. The pin spacing is standardized at 0.100 inches, equivalent to 2.54 millimeters, ensuring compatibility with common header systems.
Headers, Receptacles, Female Sockets Feature Summary
- Right-angle orientation for compact PCB integration
- Female socket contacts for header mating
- Through-hole termination method for secure attachment
Headers, Receptacles, Female Sockets Applications
- Electronic assembly requiring right-angle interconnects
- PCB-to-PCB communication modules
- Industrial control system wiring harnesses
Headers, Receptacles, Female Sockets Procurement Notes
Verify the specific contact plating material and current rating requirements against the official Marutsuelec datasheet before procurement. Ensure the selected variant matches the required operating temperature range and environmental protection standards for the intended application environment.
Headers, Receptacles, Female Sockets Selection Notes
Select this component when a right-angle female receptacle is required for a 10-pin interface. Confirm that the 2.54mm pitch aligns with the mating header dimensions. Evaluate mechanical retention needs to determine if additional locking features are necessary beyond standard through-hole soldering.
Headers, Receptacles, Female Sockets Part Context
This part belongs to Marutsuelec's series of board-to-board connectors. It serves as a passive interconnection element within electronic assemblies, providing a reliable electrical pathway between the PCB and external headers or cables without active signal processing capabilities.
Headers, Receptacles, Female Sockets Replacement Considerations
Substitute parts must match the 10-position count, 2.54mm pitch, right-angle orientation, and through-hole package. Verify that alternative manufacturers offer identical mechanical dimensions and compatible contact materials to ensure proper fit and function.
