21602X10GSE

Headers, Receptacles, Female Sockets Overview

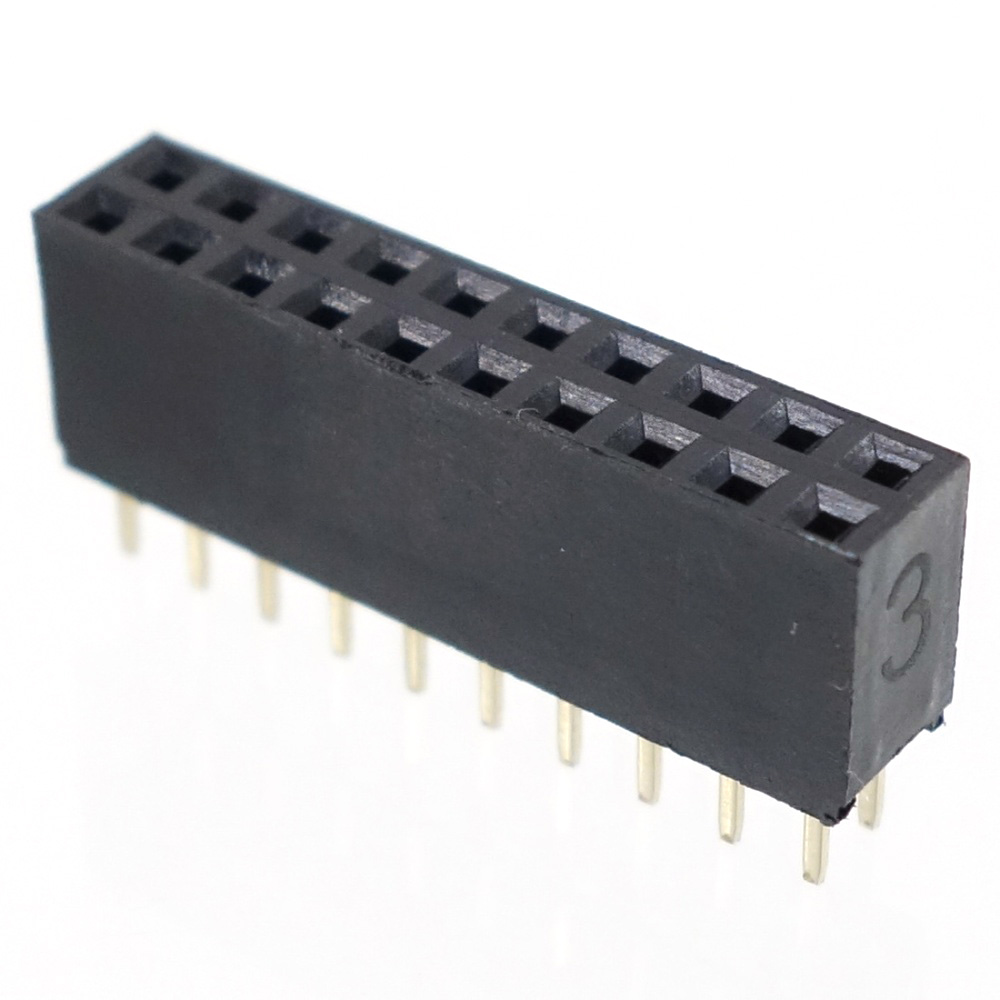

The Marutsuelec 21602X10GSE is a through-hole header receptacle connector designed for PCB mounting. It features a 10-position configuration with female sockets, providing reliable electrical interconnection. The connector utilizes a 0.100 inch (2.54mm) pitch to ensure compatibility with standard component spacing. Constructed for durability, it supports secure mating with corresponding male pin headers in electronic assemblies requiring stable signal or power transmission.

Headers, Receptacles, Female Sockets Feature Summary

• Through-hole mounting technology for robust PCB attachment
• Female socket contacts for secure header mating
• Standard 0.100 inch (2.54mm) contact pitch

Headers, Receptacles, Female Sockets Applications

• General-purpose electronic circuit board interconnections
• Industrial control system wiring harnesses
• Consumer electronics assembly modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific manufacturer datasheet for mechanical dimensions and material specifications before integration. Confirm that the 10-position layout matches the target PCB footprint requirements. Ensure the through-hole design aligns with the manufacturing process capabilities of the assembly line. Cross-reference official documentation to validate environmental ratings and operating temperature ranges for the intended application environment.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 10-position female receptacle is required for direct PCB insertion. The 2.54mm pitch ensures broad compatibility with standard male pin headers. Consider the through-hole construction for applications demanding higher mechanical stability compared to surface-mount alternatives. Verify that the current and voltage ratings meet the specific circuit load requirements during design validation.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the series of header receptacles manufactured by Marutsuelec. It serves as a complementary component to male pin headers, forming complete connector systems for electronic devices. The design focuses on providing a standardized interface for connecting various electronic modules within larger assemblies.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other 10-position, 2.54mm pitch through-hole female headers from different manufacturers. Ensure mechanical dimensions and contact plating match the original design specifications. Verify that alternative parts maintain the same electrical performance characteristics and mounting style.
