21602X13GSE

Headers, Receptacles, Female Sockets Overview

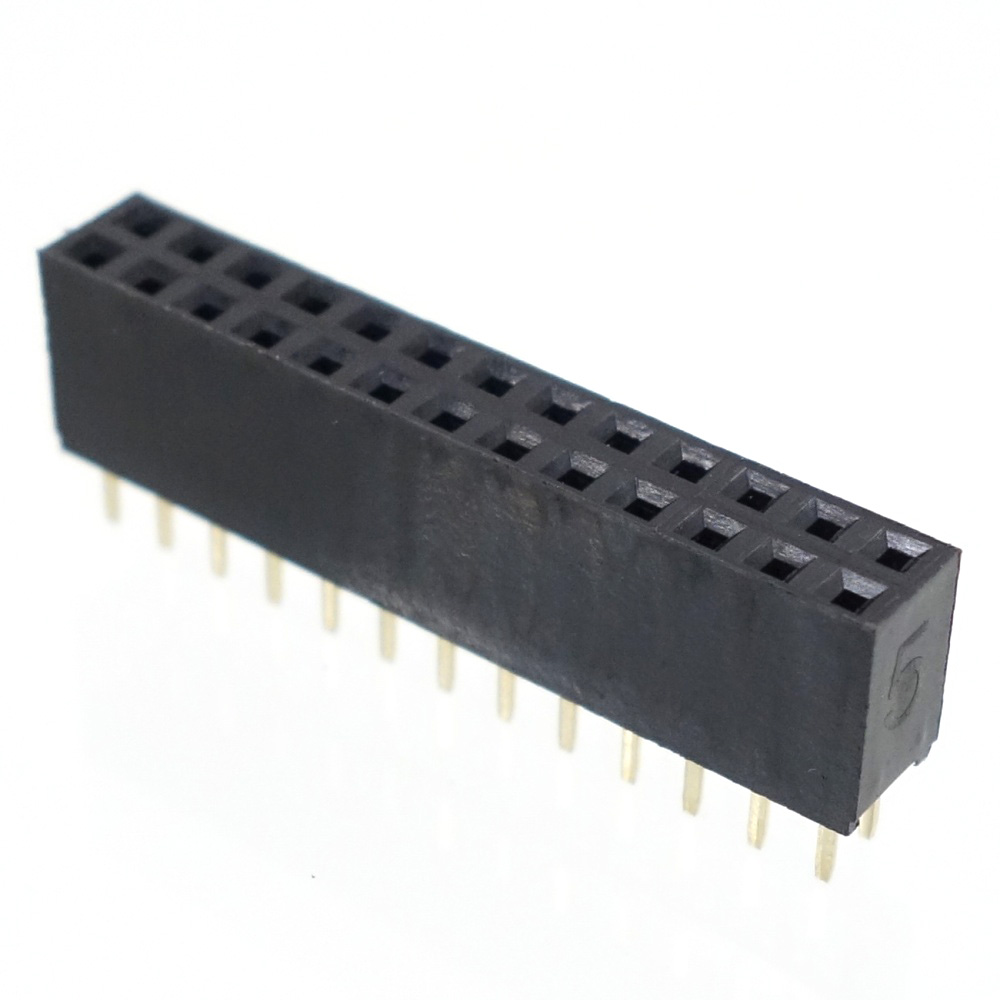

The Marutsuelec 21602X13GSE is a rectangular connector classified as a header receptacle with female sockets. It features a 13-position configuration designed for through-hole mounting on printed circuit boards. The connector utilizes a standard 0.100-inch (2.54mm) pin spacing to ensure compatibility with common electronic assembly standards. This component serves as a reliable interface solution for signal and power distribution in various electronic devices requiring secure board-to-board or cable connections.

Headers, Receptacles, Female Sockets Feature Summary

• Provides a stable mechanical connection through a robust through-hole termination method.
• Ensures precise alignment and contact reliability via standardized 0.100 inch pitch geometry.
• Facilitates efficient assembly processes with a design optimized for automated insertion.

Headers, Receptacles, Female Sockets Applications

• Industrial control systems requiring durable interconnects
• Consumer electronics assemblies needing reliable signal routing
• Telecommunications equipment utilizing standard header formats

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against official Marutsuelec documentation to confirm exact pin count and termination style. Ensure that the required current rating and voltage specifications align with the target application's electrical demands. Cross-reference the datasheet for precise dimensional tolerances to guarantee proper fit within the designated enclosure space before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 13-position female socket is required for through-hole PCB integration. Consider the 0.100 inch pitch constraint to ensure compatibility with mating headers. Evaluate the mechanical stability needs of the application, as through-hole mounting offers superior retention compared to surface mount alternatives for high-vibration environments.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the broader category of rectangular connectors and interconnects manufactured by Marutsuelec. It is specifically categorized under headers, receptacles, and female sockets. The product line supports various position counts, with this model representing a mid-range configuration suitable for applications requiring moderate channel density without excessive board footprint usage.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 13-position count, 0.100 inch pitch, and through-hole termination type. Verify that alternative manufacturers offer identical housing materials and contact plating specifications to maintain electrical performance and mechanical durability equivalent to the original Marutsuelec component.
