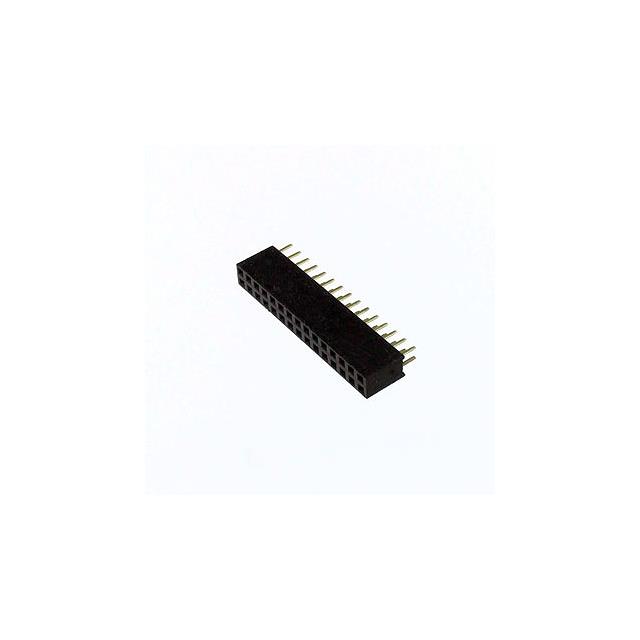

21602X15GSE is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Marutsuelec. Its product description is CONN RCPT 15POS 0.1 PCB. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for 21602X15GSE
- Description：CONN RCPT 15POS 0.1 PCB
- Series：-
- Mfr：Marutsuelec
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：15
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Insulation Color：Black
- Insulation Height：-
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：-
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：1A
- Voltage Rating：-
Headers, Receptacles, Female Sockets datasheet and documents for 21602X15GSE
Headers, Receptacles, Female Sockets Overview
The Marutsuelec 21602X15GSE is a 15-position receptacle connector designed for through-hole mounting. It features a pin spacing of 0.100 inches (2.54mm). The component utilizes female socket contacts to establish electrical connections within circuit assemblies.
Headers, Receptacles, Female Sockets Feature Summary
- Through-hole mounting configuration
- Female socket contact interface
Headers, Receptacles, Female Sockets Applications
- General electronic interconnects
- Circuit board assembly
Headers, Receptacles, Female Sockets Procurement Notes
Verify the specific manufacturer designation and datasheet availability directly with authorized distributors or the manufacturer. Confirm that the part number matches the required 15-position specification and through-hole footprint before procurement. Ensure compatibility with mating header connectors regarding pitch and gender specifications.
Headers, Receptacles, Female Sockets Selection Notes
Select this component when a 15-position female receptacle with 0.100-inch spacing is required for through-hole applications. Consider the mechanical stability provided by the through-hole design and ensure the mating connector aligns with the specified pin count and contact type.
Headers, Receptacles, Female Sockets Part Context
This component belongs to the category of headers, receptacles, and female sockets manufactured by Marutsuelec. It serves as a standard interconnect solution for connecting PCBs or cables in electronic systems requiring reliable signal or power transmission.
