21602X17GSE

Headers, Receptacles, Female Sockets Overview

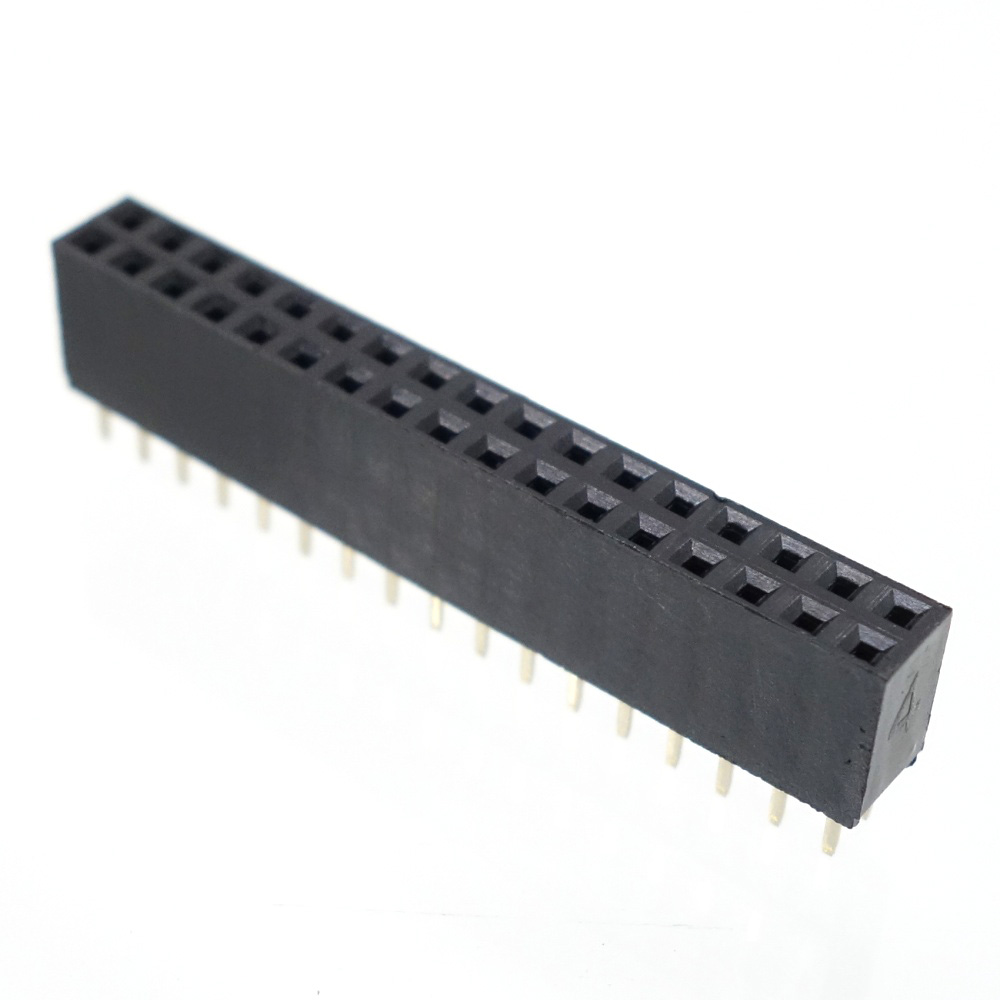

The Marutsuelec 21602X17GSE is a 17-position header receptacle connector designed for through-hole mounting. It features female sockets with a 0.100 inch (2.54mm) pitch and utilizes solder termination. The unit employs a push-pull fastening type for secure connection. The insulation color is black, and the component operates within a temperature range of -55°C to 105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Through-hole mounting configuration for PCB integration
• Push-pull fastening mechanism for secure mating
• Solder termination method for reliable electrical contact

Headers, Receptacles, Female Sockets Applications

• General electronic circuit interconnections
• Board-to-board connectivity systems
• Industrial control module interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and pitch against design requirements before procurement. Confirm that the operating temperature range meets the environmental conditions of the intended application. Ensure compatibility with the corresponding male header series for proper mechanical engagement and electrical performance.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 17-position female socket is required for rigid board connections. The through-hole style provides mechanical stability compared to surface mount alternatives. Consider the push-pull feature if frequent disconnection and reconnection cycles are anticipated in the assembly process.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Marutsuelec header and receptacle family, specifically designed for standard 2.54mm pitch applications. It serves as a complementary component to male pin headers, facilitating modular electronic designs where removable connections are necessary for maintenance or upgrade purposes.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 17-position count, 2.54mm pitch, and through-hole termination. Verify that alternative manufacturers offer compatible push-pull locking mechanisms and similar thermal ratings to ensure interchangeability without redesigning the footprint.
