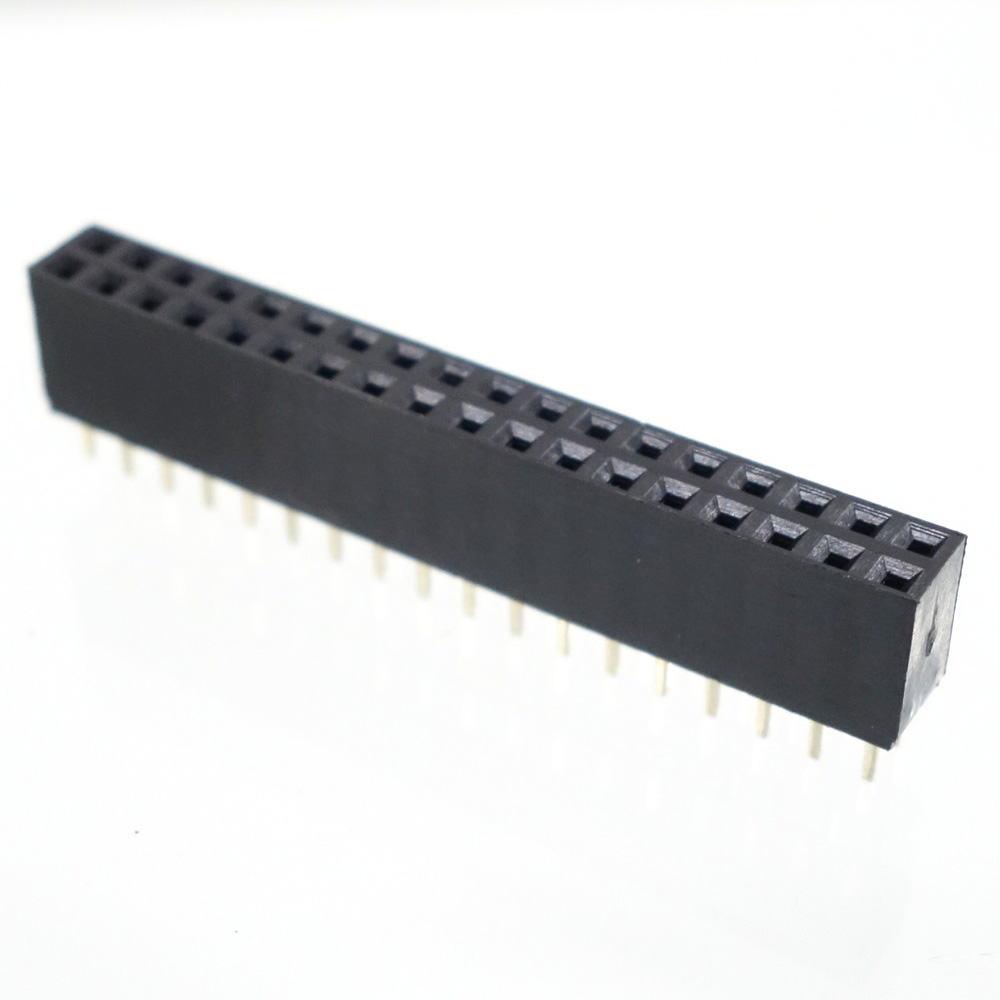

21602X18GSE is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Marutsuelec. Its product description is CONN RCPT 18POS 0.1 PCB. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for 21602X18GSE
- Description：CONN RCPT 18POS 0.1 PCB
- Series：-
- Mfr：Marutsuelec
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：18
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Insulation Color：Black
- Insulation Height：-
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：-
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：1A
- Voltage Rating：-
Headers, Receptacles, Female Sockets datasheet and documents for 21602X18GSE
Headers, Receptacles, Female Sockets Overview
The Marutsuelec 21602X18GSE is an 18-position header receptacle connector designed for through-hole mounting. It features a pin socket configuration with two columns of nine pins each, providing a total of eighteen contact points. The connector utilizes a standard 0.100-inch (2.54 mm) pitch to ensure compatibility with common board layouts. The physical socket height is specified at 8.42 mm, accommodating vertical clearance requirements in assembly designs.
Headers, Receptacles, Female Sockets Feature Summary
- Through-hole mounting construction for secure PCB attachment
- Dual-row pin socket design with eighteen positions
- Standard 2.54 mm pitch spacing for universal compatibility
Headers, Receptacles, Female Sockets Applications
- General-purpose electronic interconnects
- Industrial control panel wiring
- Consumer electronics assembly
Headers, Receptacles, Female Sockets Procurement Notes
Verify the specific manufacturer datasheet for precise mechanical tolerances and material specifications before finalizing procurement. Confirm that the supplier provides official documentation matching the 21602X18GSE designation to ensure component authenticity and compliance with required industry standards.
Headers, Receptacles, Female Sockets Selection Notes
Select this component when a dual-row female socket is required for rigid board-to-board or cable connections. Ensure the design accommodates the 8.42 mm height constraint and verify that the 2.54 mm pitch aligns with the target printed circuit board footprint dimensions.
Headers, Receptacles, Female Sockets Part Context
This part belongs to the series of header connectors manufactured by Marutsuelec. It serves as a standard interface solution within their product line, focusing on reliable electrical connectivity for multi-pin applications requiring robust mechanical stability and standardized spacing.
Headers, Receptacles, Female Sockets Replacement Considerations
Consult official distributor databases for cross-referenced part numbers from other manufacturers offering identical 18-position, 2.54 mm pitch through-hole receptacles to identify potential alternative sources.
