21602X20GSE

Headers, Receptacles, Female Sockets Overview

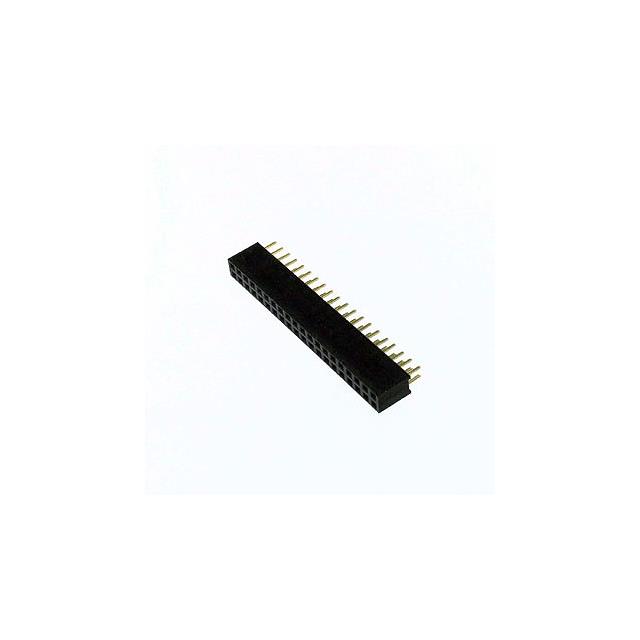

The Marutsuelec 21602X20GSE is a rectangular connector receptacle designed for through-hole mounting on printed circuit boards. It features a 20-position configuration with a 0.100-inch (2.54mm) pin spacing, ensuring compatibility with standard header assemblies. The component utilizes a gold-plated contact finish to maintain signal integrity and resist corrosion over time. Constructed with durable materials, it supports reliable electrical connections in various electronic applications requiring secure interconnects.

Headers, Receptacles, Female Sockets Feature Summary

• Through-hole termination method for robust PCB attachment
• 20-position layout with 0.100 inch pitch
• Gold-plated contacts for enhanced conductivity

Headers, Receptacles, Female Sockets Applications

• Industrial control systems
• Consumer electronics assembly
• Communication equipment interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific datasheet for mechanical dimensions and mating force requirements before integration. Confirm that the supplier provides traceability documentation for material composition. Ensure the ordering suffix matches the required contact plating thickness and housing color specifications. Cross-reference the pin count and pitch with existing board layouts to prevent alignment errors during assembly.

Headers, Receptacles, Female Sockets Selection Notes

Choose this component when a 20-pin through-hole receptacle is required for rigid board-to-board or cable connections. The 2.54mm pitch offers broad compatibility with standard headers. Consider the operating temperature range and environmental resistance if the application involves harsh conditions. Validate that the housing material meets the necessary flammability ratings for the target market.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the series of rectangular connectors manufactured by Marutsuelec. These components are widely used in the electronics industry for creating reliable interconnections between circuits. The design focuses on durability and ease of assembly, making it suitable for mass production environments where consistent performance is critical.

Headers, Receptacles, Female Sockets Replacement Considerations

Check for direct substitutes from other manufacturers offering identical 20-position, 0.100-inch pitch through-hole receptacles. Verify that any alternative part matches the exact housing height, contact plating, and terminal style to ensure mechanical fit without redesigning the PCB footprint.
