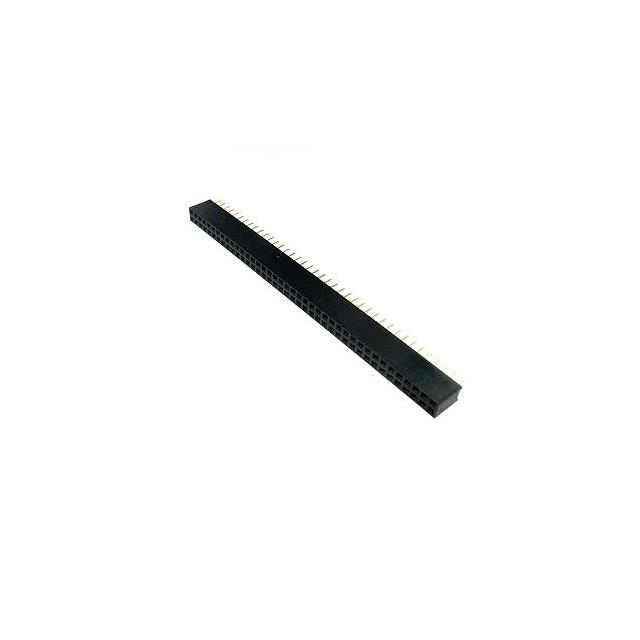

21602X40GSE is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Marutsuelec. Its product description is CONN RCPT 40POS 0.1 PCB R/A. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for 21602X40GSE
- Description：CONN RCPT 40POS 0.1 PCB R/A
- Series：-
- Mfr：Marutsuelec
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：40
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Insulation Color：Black
- Insulation Height：-
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：-
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：1A
- Voltage Rating：-
Headers, Receptacles, Female Sockets datasheet and documents for 21602X40GSE
Headers, Receptacles, Female Sockets Overview
The Marutsuelec 21602X40GSE is a 40-position receptacle connector designed for through-hole mounting. It features a right-angle configuration with a 0.100-inch (2.54mm) pitch. This female socket header is intended for secure electrical connections in electronic assemblies requiring reliable signal or power transmission.
Headers, Receptacles, Female Sockets Feature Summary
- Right-angle orientation for space-efficient board layout
- Through-hole mounting technology for mechanical stability
- Female socket design compatible with standard pin headers
Headers, Receptacles, Female Sockets Applications
- Electronic circuit board interconnections
- Signal routing in modular systems
- Power distribution in low-voltage applications
Headers, Receptacles, Female Sockets Procurement Notes
Verify the specific suffix GSE against official Marutsuelec documentation to confirm plating, material, and packaging details. Ensure compatibility with mating male pins of matching pitch and current rating. Cross-reference datasheet specifications for operating temperature range and insulation resistance before integration into final designs.
Headers, Receptacles, Female Sockets Selection Notes
Select this component when a right-angle, 40-position female header is required for through-hole assembly. Confirm that the 2.54mm pitch aligns with existing board patterns and mating connectors. Evaluate mechanical retention needs and environmental conditions to ensure long-term reliability in the target application.
Headers, Receptacles, Female Sockets Part Context
This part belongs to the Marutsuelec series of headers and receptacles. It serves as a complementary component to male pin headers, such as the 217040SE, facilitating structured connectivity within electronic hardware. The product line focuses on standardized connector solutions for various industrial and consumer electronics applications.
Headers, Receptacles, Female Sockets Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Verify direct pin-to-pin compatibility and mechanical dimensions if considering alternative manufacturers' offerings.
