21602X9GSE

Headers, Receptacles, Female Sockets Overview

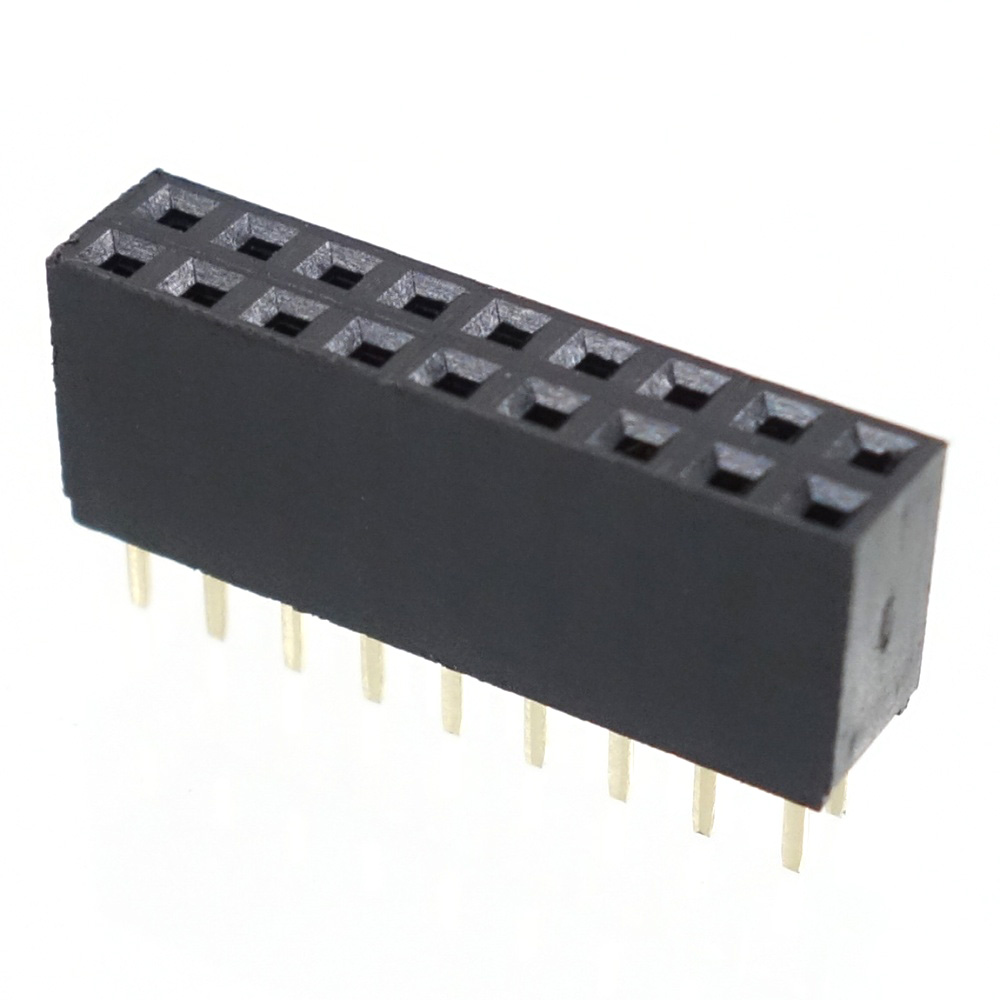

The 21602X9GSE is a rectangular connector receptacle manufactured by Marutsuelec. It features a 9-position configuration with a 0.100 inch (2.54 mm) pitch. The component utilizes through-hole termination for secure PCB mounting. Designed as a female socket, it accommodates two rows of pins to support 18-pin board interfaces. The unit has a specified socket height of 8.42 mm and operates within standard industrial temperature ranges.

Headers, Receptacles, Female Sockets Feature Summary

• Female socket receptacle design for reliable signal transmission
• Through-hole termination method ensures stable mechanical connection
• Dual-row layout supports high-density pin arrangements

Headers, Receptacles, Female Sockets Applications

• Industrial control panel interconnections
• Embedded system board-to-board connections
• General electronic equipment signal routing

Headers, Receptacles, Female Sockets Procurement Notes

Verify the exact part number against official Marutsuelec documentation before procurement. Confirm that the 2.54 mm pitch and 9-position count match your specific design requirements. Ensure compatibility with mating male headers regarding housing dimensions and retention mechanisms. Check for any specific environmental ratings if operating in harsh conditions.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, dual-row female header is required for through-hole assembly. The 2.54 mm pitch is standard for general-purpose electronics, ensuring broad availability of mating parts. Consider the 8.42 mm height constraint for enclosure clearance. Validate that the current rating meets the application's electrical demands.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the series of rectangular connectors offered by Marutsuelec. It serves as a critical interface element in printed circuit board assemblies. The design focuses on providing robust connectivity for multi-pin applications. Marutsuelec distributes these components primarily through authorized channels in Japan and globally.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 9-position count, 2.54 mm pitch, and through-hole termination style. Verify that alternative manufacturers offer identical housing dimensions and contact configurations. Ensure the replacement maintains the same female socket orientation and row spacing.
