2164-64-01-P2

Headers, Male Pins Overview

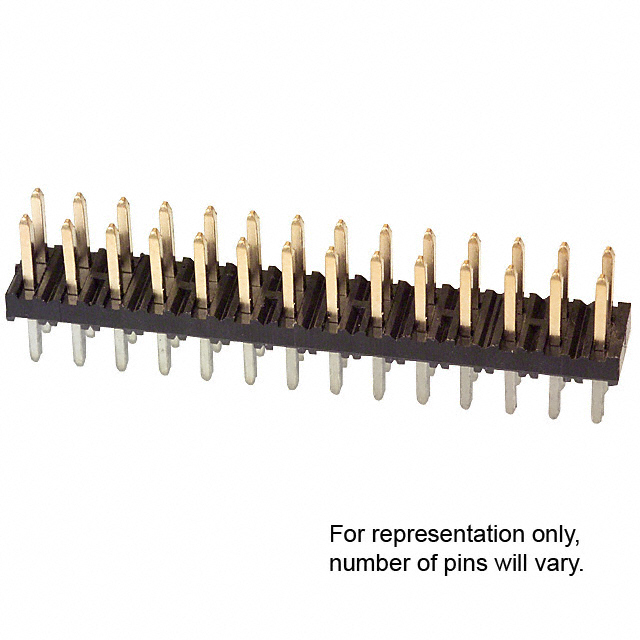

The NorComp 2164-64-01-P2 is a rectangular header connector featuring 64 positions arranged in two rows. It utilizes a 2 mm pitch and accepts male pin contacts with gold plating for reliable signal transmission. The unit employs a vertical through-hole solder termination style, ensuring secure board attachment. Constructed with black thermoplastic insulation and steel shell components finished with nickel plating, the connector provides structural integrity. This unshrouded design supports standard density applications requiring robust mechanical connection.

Headers, Male Pins Feature Summary

• Features a 2-row configuration with 64 total positions for high-density interconnects
• Utilizes gold-plated machined contacts to ensure consistent electrical performance
• Designed for vertical through-hole mounting with 2 mm contact spacing
• Incorporates a steel shell with nickel plating for enhanced durability

Headers, Male Pins Applications

• Industrial control system signal routing
• Embedded computing hardware interfaces
• Telecommunications equipment backplanes
• Automotive electronic module connections

Headers, Male Pins Procurement Notes

Verify the specific part number against official NorComp documentation to confirm current availability status. Ensure that the required contact type matches the mating receptacle specifications. Check for any updated environmental compliance declarations such as RoHS or REACH status prior to final procurement decisions. Confirm packaging quantities align with production requirements.

Headers, Male Pins Selection Notes

Select this component when a high-pin-count vertical header is required for PCB integration. The 2 mm pitch allows for compact layout designs compared to larger spacing options. Consider the unshrouded design implications for mating procedures and dust protection needs. Evaluate the through-hole mounting method against surface-mount alternatives based on assembly capabilities and mechanical stress requirements.

Headers, Male Pins Part Context

This model belongs to the NorComp 2164 series of rectangular connectors. The series offers various position counts ranging from small to large configurations. All units share common design characteristics including 2 mm pitch and similar material constructions. The specific variant defines the exact pin count and orientation within this standardized product family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 64-position 2mm pitch headers from NorComp such as the 2164-62-01-P2 or 2164-52-01-P2 if pin count adjustments are acceptable. Cross-manufacturer replacements must match the 2 mm pitch, vertical orientation, and 64-position requirement precisely.
