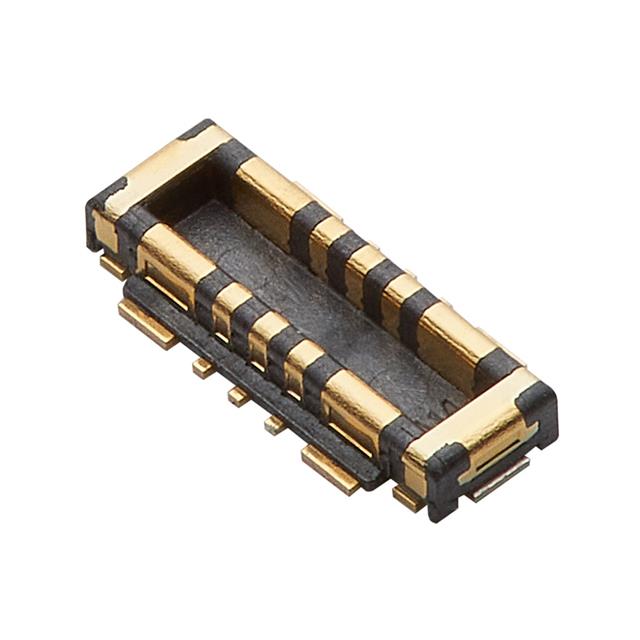

Arrays, Edge Type, Mezzanine (Board To Board) 2166570109 product image

2166570109

$0.24

Description：0.4 BT BTB H07 10P PLUG EMB PKG
Series：SlimStack 216657
Mfr：Molex
Package：Tape & Reel (TR)

SKU:c2a608fbb782 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2166570109 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Molex. Its product description is 0.4 BT BTB H07 10P PLUG EMB PKG. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 2166570109

Description：0.4 BT BTB H07 10P PLUG EMB PKG
Series：SlimStack 216657
Mfr：Molex
Package：Tape & Reel (TR)
Connector Type：Plug, Outer Shroud Contacts
Number of Positions：10
Pitch：0.016" (0.40mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Solder Retention
Contact Finish：Gold
Contact Finish Thickness：3.94µin (0.100µm)
Mated Stacking Heights：0.7mm
Height Above Board：0.023" (0.59mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 2166570109

2166570109
