217006SE

Headers, Male Pins Overview

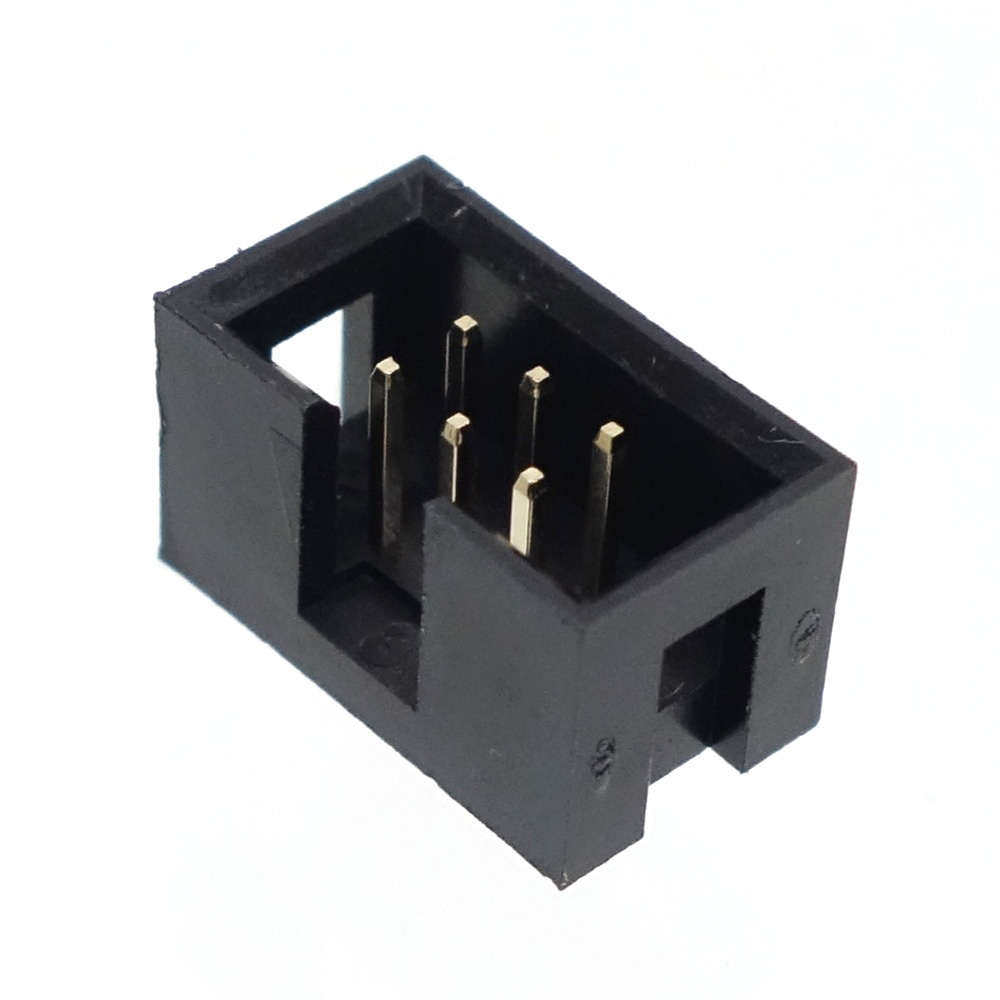

The Marutsuelec 217006SE is a male pin header component designed for electronic circuit connections. It features black insulation and operates within a temperature range of -40°C to 85°C. The connector supports a current rating of 3A and utilizes materials with a UL94 V-0 flammability rating. This component is classified as RoHS non-compliant, indicating specific material composition constraints for certain regulatory environments.

Headers, Male Pins Feature Summary

• Provides reliable electrical connectivity through male pin header configuration
• Constructed with black insulation material for visual identification and protection
• Engineered to withstand operating temperatures from -40°C to 85°C
• Utilizes UL94 V-0 rated materials for enhanced fire safety performance

Headers, Male Pins Applications

• General purpose electronic circuit board interconnections
• Prototyping and development board setups
• Industrial control panel wiring interfaces

Headers, Male Pins Procurement Notes

Verify RoHS compliance requirements before procurement, as this item is explicitly listed as non-compliant. Confirm that the 3A current rating and -40°C to 85°C operating temperature range align with your specific application environmental and electrical constraints. Ensure the male pin header interface matches your PCB footprint and mating connector specifications to guarantee proper mechanical and electrical integration.

Headers, Male Pins Selection Notes

Select this component when a standard male pin header is required for low-current applications up to 3A. Consider the non-RoHS status if your project mandates strict environmental compliance standards. The wide operating temperature range makes it suitable for various industrial or consumer electronics environments where thermal stability is necessary but extreme high-temperature ratings are not the primary constraint.

Headers, Male Pins Part Context

Marutsuelec distributes a wide variety of electronic components, including headers and connectors. The 217006SE falls under the category of passive interconnect hardware. Unlike active components such as batteries or semiconductors, this part serves a structural connection role. Its specifications focus on physical durability, electrical capacity, and material safety ratings rather than complex functional logic or data processing capabilities.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should verify pin pitch, row configuration, and housing dimensions against alternative manufacturers' datasheets to ensure mechanical compatibility.
