217016SE

Headers, Male Pins Overview

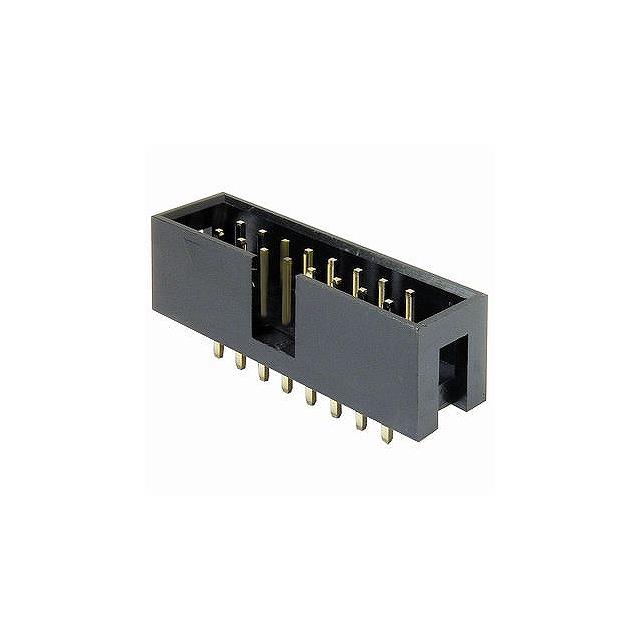

The Marutsuelec 217016SE is a vertical male pin header connector designed for printed circuit board applications. It features a 16-position configuration with a 2.54 mm pitch, providing reliable electrical interconnection between boards or components. The connector utilizes a straight, through-hole mounting style to ensure secure attachment to the PCB substrate.

Headers, Male Pins Feature Summary

• Vertical male pin header design for direct board-to-board or component interconnection
• Standard 2.54 mm contact pitch ensuring compatibility with common PCB layouts
• 16-position configuration offering multiple channel connectivity in a compact form factor

Headers, Male Pins Applications

• General-purpose electronic assembly requiring vertical interconnects
• Prototype development and breadboarding setups
• Consumer electronics internal wiring connections

Headers, Male Pins Procurement Notes

Verify the specific manufacturer part number against official distributor catalogs to confirm availability and authenticity. Ensure that the vertical orientation and 2.54 mm pitch match your PCB footprint requirements before ordering. Cross-reference the 16-position count to prevent mismatched connector selections during procurement processes.

Headers, Male Pins Selection Notes

Select this component when a vertical male header is required for 2.54 mm pitch applications. Confirm that the PCB hole spacing aligns precisely with the standard 2.54 mm grid. Consider the mechanical stability provided by the vertical through-hole mount for stable signal transmission in low-frequency circuits.

Headers, Male Pins Part Context

This component belongs to the category of headers, male pins, manufactured by Marutsuelec. It serves as a fundamental passive interconnect element within electronic assemblies, distinct from active semiconductor devices or complex integrated circuits. Its primary function is physical and electrical bridging between circuit layers or modules.
