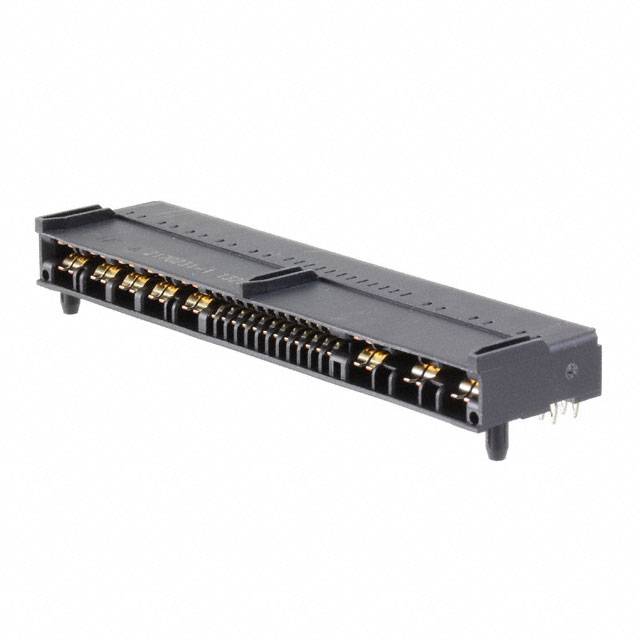

2170231-1

$29.24

Description：CONN EDGE DUAL FEMALE GOLD
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:1b1e8e9e8f39 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2170231-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN EDGE DUAL FEMALE GOLD. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2170231-1

Description：CONN EDGE DUAL FEMALE GOLD
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：-
Card Thickness：0.063" (1.60mm)
Number of Rows：2
Pitch：-
Read Out：Dual
Features：Board Guide
Mounting Type：Through Hole, Right Angle
Termination：Press-Fit
Contact Material：Phosphor Bronze
Contact Finish：Gold
Contact Finish Thickness：-
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-

Edgeboard Connectors datasheet and documents for 2170231-1

2170231-1

Edgeboard Connectors Overview

The TE Connectivity AMP Connectors part number 2170231-1 is a hybrid card edge power connector classified under I/O connectors. It features a dual female configuration with gold contact finish and includes board guide features for alignment. The component is packaged in bulk and is currently listed as obsolete in the manufacturer's lifecycle status.

Edgeboard Connectors Feature Summary

Hybrid card edge power connector design
Dual female gender configuration
Gold contact finish for conductivity
Integrated board guide feature

Edgeboard Connectors Applications

I/O connector interfaces
Card edge power applications
Electronic assembly integration

Edgeboard Connectors Procurement Notes

Verify current availability as this component is marked obsolete. Confirm compatibility with existing designs due to potential end-of-life status. Check for valid substitute part numbers from TE Connectivity before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component only if legacy support is required. Evaluate alternative active series from the same manufacturer for new designs. Ensure mechanical fit and electrical requirements match the specific application constraints.

Edgeboard Connectors Part Context

This part belongs to the TE Connectivity AMP Connectors portfolio, specifically within the I/O connector category. It represents a specialized hybrid solution combining power and signal capabilities via card edge interface technology.
