2170822221 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Molex. Its product description is MCIO VT 8X GEN5 AR30U1.50MM. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2170822221
- Description：MCIO VT 8X GEN5 AR30U1.50MM
- Series：-
- Mfr：Molex
- Package：Bulk
- Card Type：-
- Gender：-
- Number of Positions/Bay/Row：-
- Number of Positions：-
- Card Thickness：-
- Number of Rows：-
- Pitch：-
- Read Out：-
- Features：-
- Mounting Type：-
- Termination：-
- Contact Material：-
- Contact Finish：-
- Contact Finish Thickness：-
- Contact Type：-
- Color：-
- Flange Feature：-
- Operating Temperature：-
Edgeboard Connectors datasheet and documents for 2170822221
Edgeboard Connectors Overview

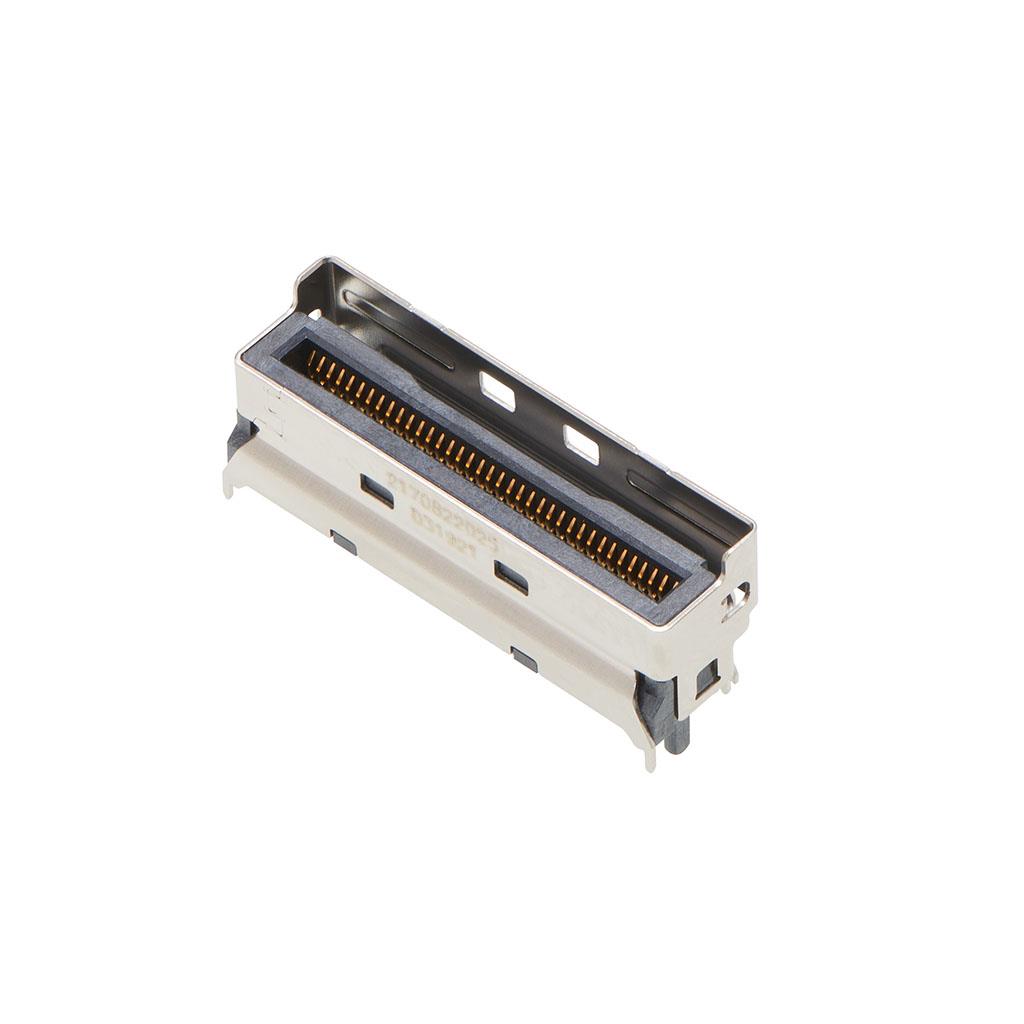

The Molex 2170822221 is a Mini Cool Edge (MCIO) vertical receptacle connector designed for high-speed I/O applications. It supports 8x PCIe Gen5 interfaces with 74 loaded circuits and a maximum data rate of 32.0 Gbps. The component features 0.75µm gold-plated contacts, a copper alloy shell with nickel plating, and matte tin termination. It operates at a maximum voltage of 30V AC/DC with 1.1A per contact current capacity. The connector utilizes a 3.00mm solder peg length and includes a pick-and-place cap for automated assembly.
Edgeboard Connectors Feature Summary
- Supports 8x PCIe Gen5 high-speed data transfer
- Vertical orientation with compliant pin termination
- Gold-plated mating contacts for reliable signal integrity
- Integrated pick-and-place cap for robotic handling
Edgeboard Connectors Applications
- High-speed server backplanes
- Storage area network interconnects
- Enterprise switch fabric connections
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix to confirm the exact solder peg length and packaging configuration. Ensure compatibility with the mating edge card specifications regarding pitch and circuit count. Confirm compliance requirements such as EU RoHS and low-halogen status against project standards before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when designing systems requiring 8-lane PCIe Gen5 connectivity with vertical mounting constraints. Consider the 3.00mm solder peg length for board thickness compatibility. Evaluate the need for the integrated pick-and-place cap if automated surface-mount assembly is utilized in the manufacturing process.
Edgeboard Connectors Part Context
This part belongs to the Molex Mini Cool Edge (MCIO) series, which provides compact, high-density interconnect solutions. The series offers various configurations including 4x, 8x, 16x, and 20x options to support different bandwidth requirements in modern computing infrastructure.
Edgeboard Connectors Replacement Considerations
Consult official Molex documentation for direct substitutes within the MCIO family. Verify that any alternative part maintains identical 8x PCIe Gen5 electrical characteristics and mechanical dimensions.
