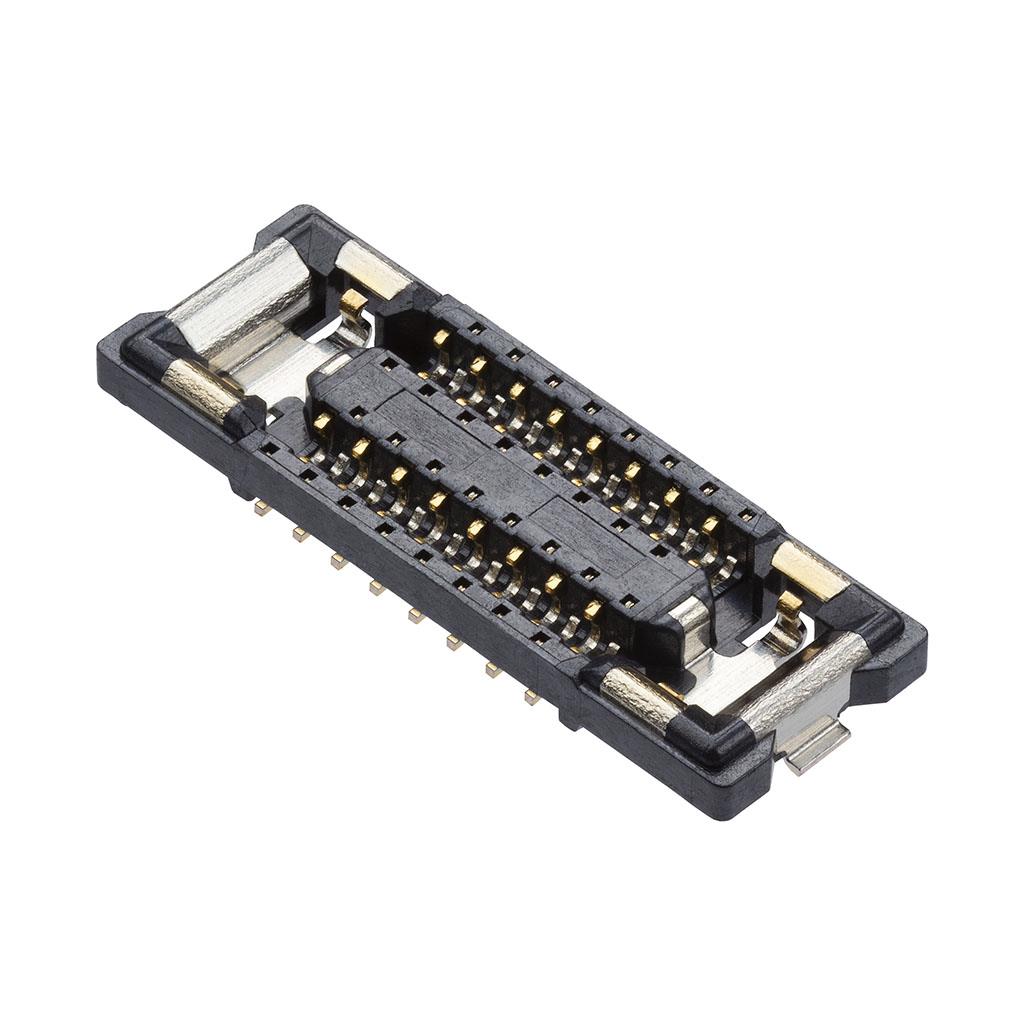

Arrays, Edge Type, Mezzanine (Board To Board) 2177160201 product image

2177160201

$0.71

Description：0.175BTB QUADROWG2 RECEMBSTPPKG
Series：Quad-Row 217717
Mfr：Molex
Package：Bulk

SKU:6dde7fb2bc9c Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2177160201 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Molex. Its product description is 0.175BTB QUADROWG2 RECEMBSTPPKG. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 2177160201

Description：0.175BTB QUADROWG2 RECEMBSTPPKG
Series：Quad-Row 217717
Mfr：Molex
Package：Bulk
Connector Type：Receptacle, Center Strip Contacts
Number of Positions：20
Pitch：0.007" (0.18mm)
Number of Rows：4
Mounting Type：Surface Mount
Features：Solder Retention
Contact Finish：Gold
Contact Finish Thickness：3.94µin (0.100µm)
Mated Stacking Heights：0.6mm
Height Above Board：0.023" (0.59mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 2177160201

2177160201
