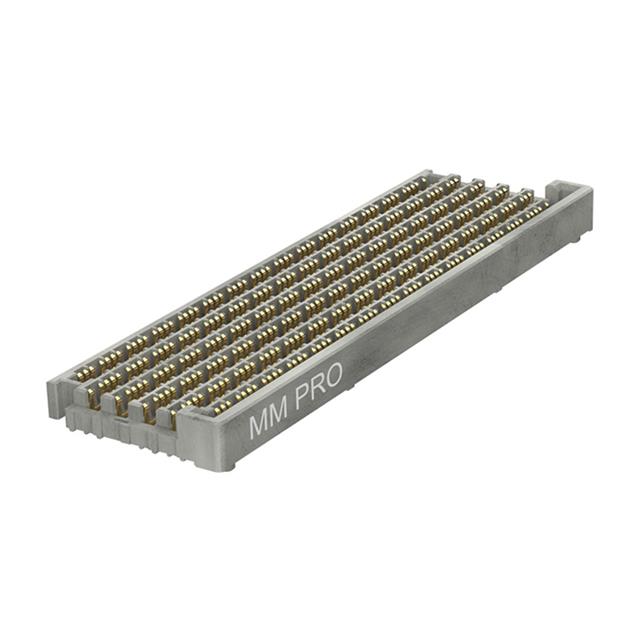

Arrays, Edge Type, Mezzanine (Board To Board) 2189101115 product image

2189101115

$58.72

Description：MIRROR MEZZ PRO 15PX11R 2.5MM
Series：Mirror Mezz 218910
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f8c237fe69f5 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2189101115 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Molex. Its product description is MIRROR MEZZ PRO 15PX11R 2.5MM. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 2189101115

Description：MIRROR MEZZ PRO 15PX11R 2.5MM
Series：Mirror Mezz 218910
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Self Mating, Non-Gendered, Hermaphroditic
Number of Positions：688
Pitch：-
Number of Rows：11
Mounting Type：Surface Mount
Features：Board Guide, Pick and Place
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Mated Stacking Heights：5mm
Height Above Board：0.183" (4.65mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 2189101115

2189101115
