2199230-3

Edgeboard Connectors Overview

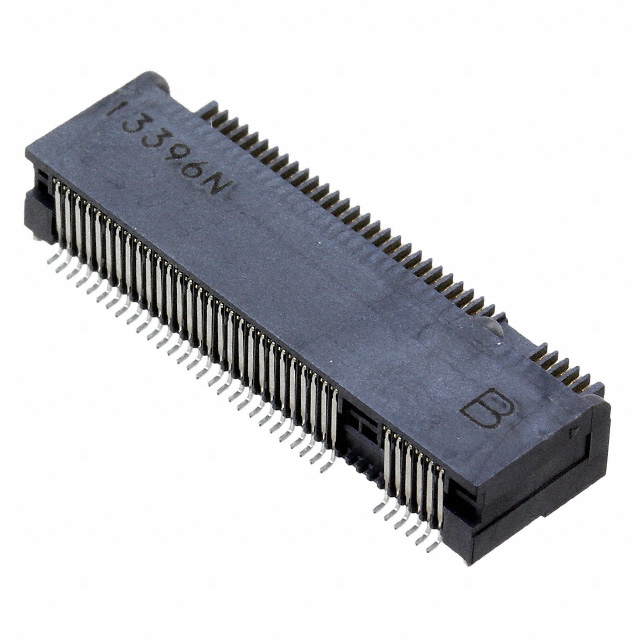

The TE Connectivity AMP Connectors part number 2199230-3 is a female card edge connector designed for M.2 (NGFF) mini-card applications. It features 67 positions arranged in two rows with a 0.50 mm pitch. The connector utilizes gold-plated copper alloy contacts and is rated for 50 V voltage and 500 mA current. It supports surface mount installation at a right angle, operating within a temperature range of -40°C to 80°C.

Edgeboard Connectors Feature Summary

• Designed specifically for M.2 (NGFF) mini-card interface standards
• Features dual-row configuration with board guide rails and marking
• Utilizes gold-plated contacts for reliable signal transmission
• Supports right-angle surface mount PCB integration

Edgeboard Connectors Applications

• M.2 NGFF mini-card module connections
• Single-sided module interfaces
• Industrial computing hardware
• Drone solution connectivity systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official TE Connectivity documentation to ensure correct contact plating thickness and housing material specifications. Confirm that the procurement channel provides valid RoHS3 compliance certificates. Cross-reference the manufacturer part number with authorized distributor databases to validate authenticity and traceability before finalizing purchase orders.

Edgeboard Connectors Selection Notes

Select this component when an M.2 NGFF compatible female socket is required for high-density data transfer. Ensure the design accommodates the 0.50 mm pitch and 67-position layout. Verify that the PCB footprint matches the right-angle surface mount requirements. Consider the thermal operating range and mechanical stability provided by the board guide rails during system integration.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP M.2 NGFF series, which focuses on small form-factor connectivity solutions. It is engineered for modern computing and industrial applications requiring robust mini-card interfaces. The product line emphasizes reliability and precise alignment for high-speed data modules.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support or official distributors for verified equivalent components if this specific part number is unavailable.

Edgeboard Connectors FAQ

What is the contact material used in this connector?

The contacts are made from copper alloy with a gold plating finish.

Is this connector suitable for single-sided modules?

Yes, the application specification confirms it is designed for single-sided module interfaces.
