2199230-4

$1.61

Description：CONN M.2 FMALE 67POS 0.020 GOLD
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e7abd4fb2b29 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2199230-4 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN M.2 FMALE 67POS 0.020 GOLD. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2199230-4

Description：CONN M.2 FMALE 67POS 0.020 GOLD
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)
Card Type：M.2 (NGFF) Mini Card
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：67
Card Thickness：-
Number of Rows：2
Pitch：0.020" (0.50mm)
Read Out：Dual
Features：Board Guide, Keyed
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：15.0µin (0.38µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 80°C

Edgeboard Connectors datasheet and documents for 2199230-4

2199230-4

Edgeboard Connectors Overview

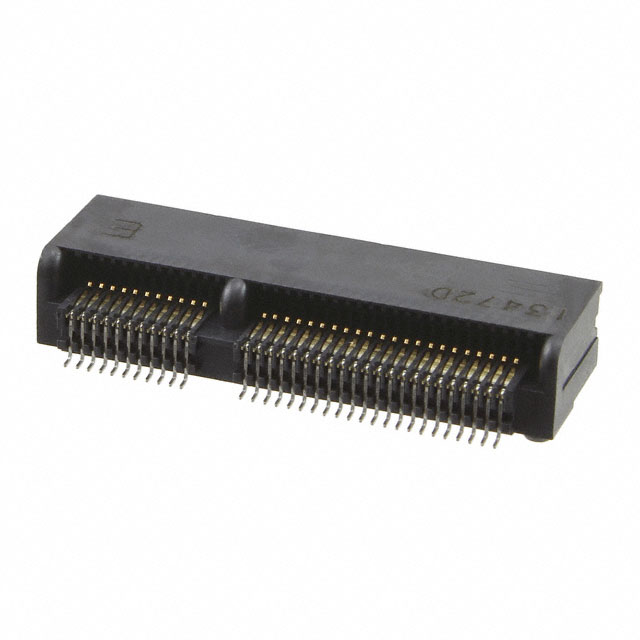

TE Connectivity AMP Connectors part number 2199230-4 is a right-angle, surface-mount edge connector designed for M.2 (NGFF) Mini Card applications. It features 67 female contacts arranged in two rows with a 0.50mm pitch. The connector utilizes gold-plated copper alloy terminals and a black thermoplastic insulator. Rated for operation between -40°C and 80°C, it supports single-sided module integration with specific height requirements.

Edgeboard Connectors Feature Summary

Right-angle surface mount design for compact PCB integration
Compatible with M.2 (NGFF) Mini Card form factors
Gold-plated contacts ensure reliable signal transmission
Includes board guide rail with marking for precise alignment

Edgeboard Connectors Applications

M.2 NGFF Mini Card edge connections
Single-sided module integration
Compact electronic device interconnects

Edgeboard Connectors Procurement Notes

Verify the specific keying configuration against the application requirement, as this series includes variants with different key positions. Confirm that the selected variant matches the required mechanical height specifications for the target single-sided module assembly to ensure proper fit and function.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, surface-mount interface is required for M.2 modules. Ensure the PCB layout accommodates the 0.50mm pitch and dual-row configuration. Verify compatibility with the specific card keying standard needed for the system design.

Edgeboard Connectors Part Context

This connector belongs to the TE Connectivity M.2 NGFF Series, which provides specialized interconnect solutions for next-generation form factor cards. The series offers various configurations to support diverse mounting orientations and keying requirements within the M.2 ecosystem.
