Edgeboard Connectors Overview

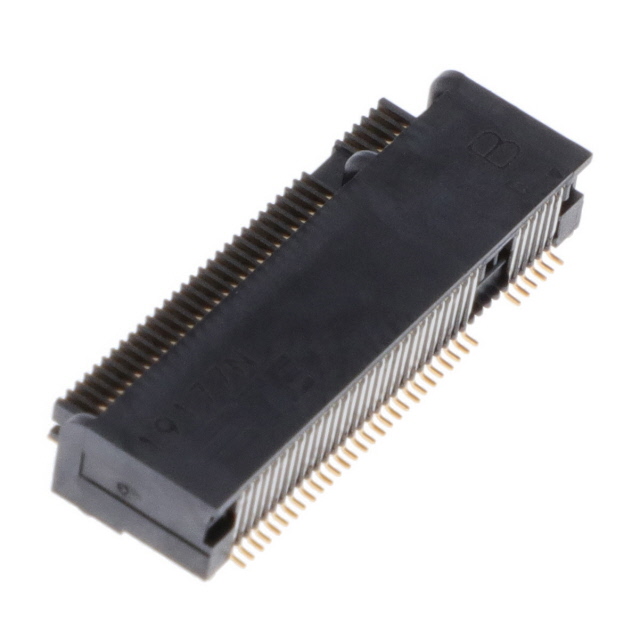

The TE Connectivity AMP Connectors part number 2199230-5 is a female edge card connector designed for M.2 (NGFF) mini cards. It features 67 positions arranged in two rows with a 0.020-inch (0.50mm) pitch. The contacts are made of copper alloy with a gold plating thickness of 15.0µin (0.38µm). The housing is black thermoplastic, and the connector supports surface mount right-angle PCB installation. It operates within a temperature range of -40°C to 80°C.

Edgeboard Connectors Feature Summary

• Designed specifically for M.2 (NGFF) mini card applications
• Features board guide rails for precise alignment during insertion
• Utilizes gold-plated copper alloy contacts for reliable signal transmission
• Supports surface mount right-angle mounting on printed circuit boards

Edgeboard Connectors Applications

• M.2 (NGFF) mini card edge connections
• Single-sided module interfaces
• High-end application data storage slots

Edgeboard Connectors Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm exact plating thickness and mechanical tolerances. Ensure compatibility with single-sided module specifications as defined in the product specification. Confirm RoHS3 compliance status prior to final integration into the design.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, surface-mount interface is required for M.2 NGFF modules. The 67-position count aligns with standard A or B key configurations. Verify that the PCB layout accommodates the right-angle footprint and that the operating temperature range meets environmental requirements.

Edgeboard Connectors Part Context

This connector belongs to the Amp M.2 NGFF series, which provides interconnect solutions for next-generation form factor cards. It is engineered for high-density applications requiring robust mechanical retention and electrical stability. The series supports various pin counts tailored to different module keying and capacity requirements.

Edgeboard Connectors Replacement Considerations

The part number 1-2199230-5 is listed as a parameter-equivalent alternative with identical specifications. Verify mechanical fit and pinout compatibility before substitution.
