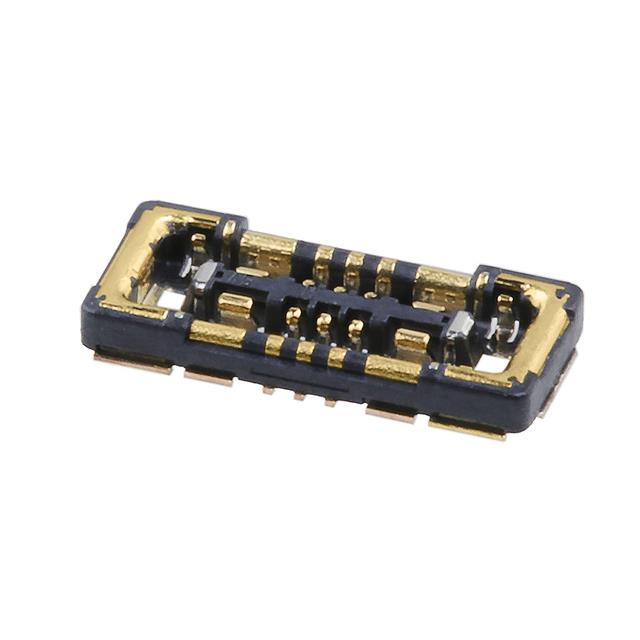

Arrays, Edge Type, Mezzanine (Board To Board) 2202500069 product image

2202500069

$0.54

Description：0.35 BT BTB H07 6P REC. EMB PKG
Series：SlimStack 220250
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:bf4ba33575aa Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2202500069 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Molex. Its product description is 0.35 BT BTB H07 6P REC. EMB PKG. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 2202500069

Description：0.35 BT BTB H07 6P REC. EMB PKG
Series：SlimStack 220250
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle, Center Strip Contacts
Number of Positions：8 (6 + 2 Power)
Pitch：0.020" (0.50mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：-
Contact Finish：Gold
Contact Finish Thickness：3.94µin (0.100µm)
Mated Stacking Heights：0.7mm
Height Above Board：0.025" (0.63mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 2202500069

2202500069
