2204061-2

Edgeboard Connectors Overview

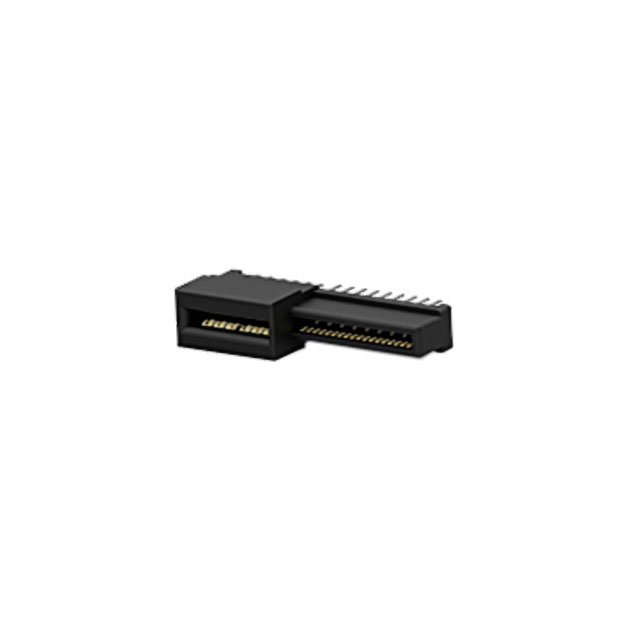

The TE Connectivity 2204061-2 is a dual-edge card edge power connector designed for secure electrical connections to printed circuit boards. It features 40 positions, comprising 36 signal and 4 dedicated power contacts. The connector utilizes a gold-plated contact finish over a nickel underplate to ensure reliable conductivity and corrosion resistance. Designed for surface mount termination, it supports dual-edge board interfaces with a centerline configuration of 1.27 mm (0.05 in) for signal pins and 2.54 mm (0.1 in) for power pins. The housing is constructed from black thermoplastic material.

Edgeboard Connectors Feature Summary

• Dual-edge interface design accommodates two-sided PCB insertion for enhanced stability
• Dedicated high-current power positions integrated within the signal array
• Gold-plated contact surfaces provide durable low-resistance electrical pathways
• Surface mount termination method facilitates automated assembly processes

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• High-density server blade power distribution
• Automotive electronic module connections

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required termination style and housing variant. Confirm compliance with RoHS directives and REACH regulations for the target market. Ensure the selected component aligns with the dual-edge PCB footprint specifications. Check for any recent Product Change Notifications regarding packaging or manufacturing location updates before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a robust power and signal combination is required on a single dual-edge connector. Evaluate the thermal management requirements as the power positions handle higher currents. Ensure the mating PCB thickness falls within the connector's clamping range. Consider the operating temperature range of -55°C to 105°C for environmental suitability in harsh industrial settings.

Edgeboard Connectors Part Context

This part belongs to the Industrial Mini I/O Connector System family by TE Connectivity AMP Connectors. The series is engineered for demanding environments requiring reliable connectivity. The 2204061-2 specifically addresses applications needing both signal integrity and power delivery through a compact dual-edge form factor, distinguishing it from standard single-edge connectors.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical compatibility and electrical ratings if considering alternative manufacturers. Consult TE Connectivity technical support for direct cross-reference recommendations.
