2204072-1

Edgeboard Connectors Overview

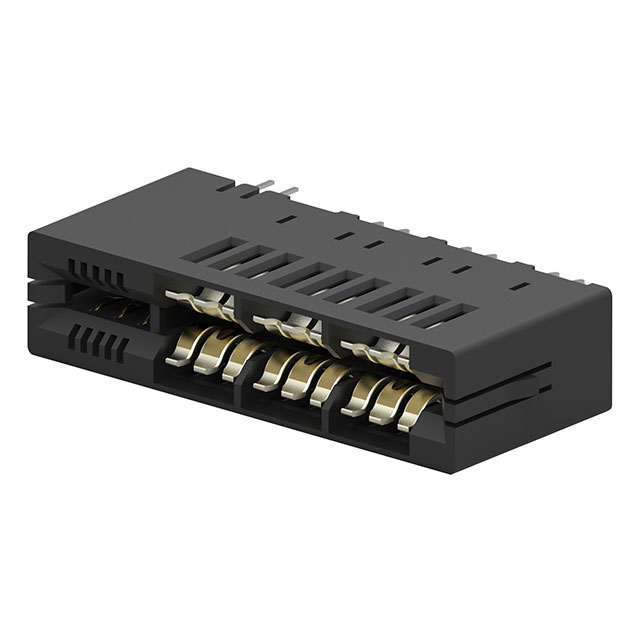

The 2204072-1 is a vertical card edge connector from the MULTI-BEAM series by TE Connectivity AMP Connectors. It features a dual female configuration with a total of 16 positions, arranged in a specific pin and socket layout. The contacts are gold-plated to ensure reliable signal transmission. This component is designed for high-density power and signal connectivity applications.

Edgeboard Connectors Feature Summary

• Vertical orientation design for board integration
• Dual female contact configuration
• Gold-plated contacts for conductivity

Edgeboard Connectors Applications

• Server systems
• Data communication equipment
• High-density interconnect applications

Edgeboard Connectors Procurement Notes

Verify the part number against official manufacturer documentation to confirm specifications. Check for lifecycle status updates as this model may be subject to obsolescence notices. Ensure compatibility with mating card edge designs before procurement.

Edgeboard Connectors Selection Notes

Select this connector for vertical mounting requirements where high-density signal paths are necessary. Confirm that the dual female interface matches the system's male card edge connectors. Validate mechanical fit within the designated enclosure space.

Edgeboard Connectors Part Context

This component belongs to the MULTI-BEAM series, which focuses on high-density connectivity solutions. It serves as a critical interface element in complex electronic assemblies requiring robust signal integrity and stable physical connections.

Edgeboard Connectors Replacement Considerations

Official sources indicate this part is scheduled for obsolescence. Consult manufacturer databases for verified substitute part numbers or recommended alternatives within the same series.
