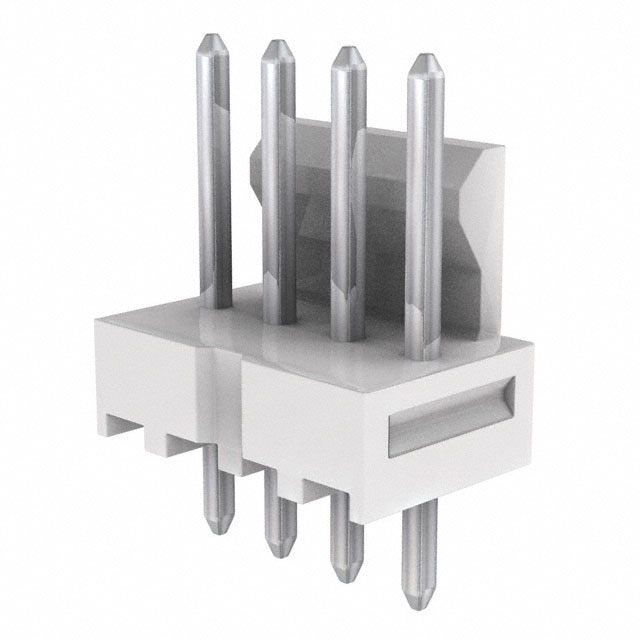

22045044 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HEADER VERT 4POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 22045044

• Description：CONN HEADER VERT 4POS 2.54MM
• Series：KK254, 6373
• Mfr：Molex
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：4
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：3
• Style：Board to Board or Cable
• Shrouding：Shrouded - 1 Wall
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Friction Lock
• Contact Length - Mating：0.295" (7.49mm)
• Contact Length - Post：0.140" (3.56mm)
• Overall Contact Length：0.560" (14.22mm)
• Insulation Height：0.322" (8.18mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：100.0µin (2.54µm)
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polyamide (PA), Nylon
• Features：-
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：White
• Current Rating (Amps)：-
• Voltage Rating：-
