Product Detailed Parameters
- Description：PIN HEADER, DOUBLE ROW, 10 PIN,
- Series：2212
- Mfr：Oupiin
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.050" (1.27mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.228" (5.80mm)
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：0.445" (11.30mm)
- Insulation Height：0.098" (2.50mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：Gold
- Contact Material：Brass
- Insulation Material：Polyamide (PA6T), Nylon 6T
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：1A
- Voltage Rating：-
Download product information
Overview

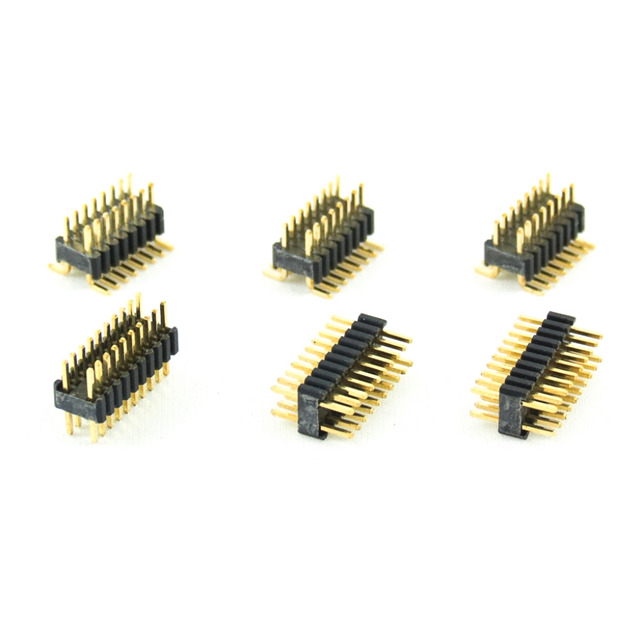

The Oupiin 2212-2X05G00S/030/058B is a double-row male pin header featuring ten positions with a 1.27mm pitch. Designed for through-hole mounting, it utilizes brass contacts and black insulation. The component operates within a temperature range of -40°C to +105°C and includes end connection pins measuring 3mm in length. It complies with RoHS3 standards and belongs to the 2212 series.
Feature Summary
- Double-row configuration providing ten contact positions
- Through-hole mounting style for secure board attachment
- Push-pull fastening type mechanism
Applications
- General electronic circuit interconnections
- Board-to-board signal transmission
- Consumer electronics assembly
Procurement Notes
Verify the specific suffix codes against official Oupiin documentation to ensure correct pin count and housing compatibility. Confirm that the RoHS3 compliance status meets current regulatory requirements for your target market. Cross-reference the 3mm pin length with PCB thickness specifications to guarantee proper solder joint formation and mechanical stability during operation.
Selection Notes
Select this component when a compact double-row male connector is required for high-density applications. The 1.27mm pitch allows for tighter spacing compared to standard 2.54mm headers. Ensure the design accommodates the through-hole footprint and verify that the operating temperature range aligns with the environmental conditions of the final product assembly.
Part Context
This part belongs to the Oupiin 2212 series of 1.27mm pin headers. The series offers versatile configurations including single and double rows with various mounting styles. The 2212-2X05G00S/030/058B specifically denotes a double-row variant with ten pins, designed for reliable electrical connectivity in space-constrained electronic devices.
Replacement Considerations
Consult Oupiin catalogs for direct substitutes within the 2212 series. Verify that alternative parts maintain identical 1.27mm pitch, double-row structure, and through-hole mounting characteristics to ensure mechanical and electrical compatibility without redesigning the PCB footprint.
