2212078-1

Edgeboard Connectors Overview

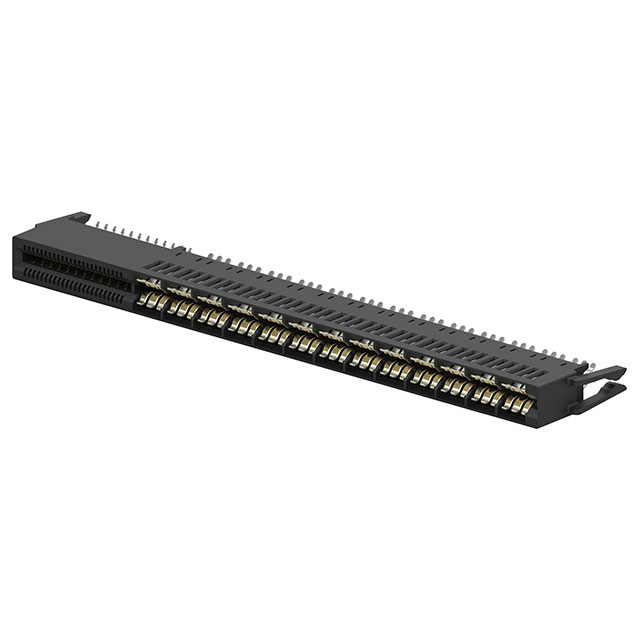

The TE Connectivity AMP Connectors part number 2212078-1 is a dual-sided card edge connector belonging to the MULTI-BEAM CE series. It features a straddle mount installation type designed for a card thickness of 1.57 mm. The connector provides a total of 74 contacts, specifically configured with 26 power contacts and 48 signal contacts.

Edgeboard Connectors Feature Summary

• Dual-sided contact configuration supporting both power and signal transmission on a single interface.
• Straddle mount design ensures secure mechanical retention for specified card thicknesses.

Edgeboard Connectors Applications

• High-density electronic interconnects
• Backplane connections in industrial systems
• Signal and power distribution modules

Edgeboard Connectors Procurement Notes

Verify component status as discontinued at major distributors like DigiKey. Confirm availability through alternative channels or authorized suppliers. Check for valid replacement part numbers if original supply is unavailable. Ensure compatibility with existing board layouts and mating connectors before procurement.

Edgeboard Connectors Selection Notes

Select this connector when dual-sided high-density interconnection is required for 1.57 mm thick circuit boards. The specific split between 26 power and 48 signal contacts suits applications needing robust power delivery alongside extensive signal routing. Verify mounting constraints align with straddle mount requirements.

Edgeboard Connectors Part Context

This component is part of the MULTI-BEAM CE series by TE Connectivity AMP Connectors. It serves as a specialized card edge solution for demanding electronic environments requiring reliable dual-side connectivity.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consider consulting manufacturer resources for end-of-life alternatives.
