2214913-4

Edgeboard Connectors Overview

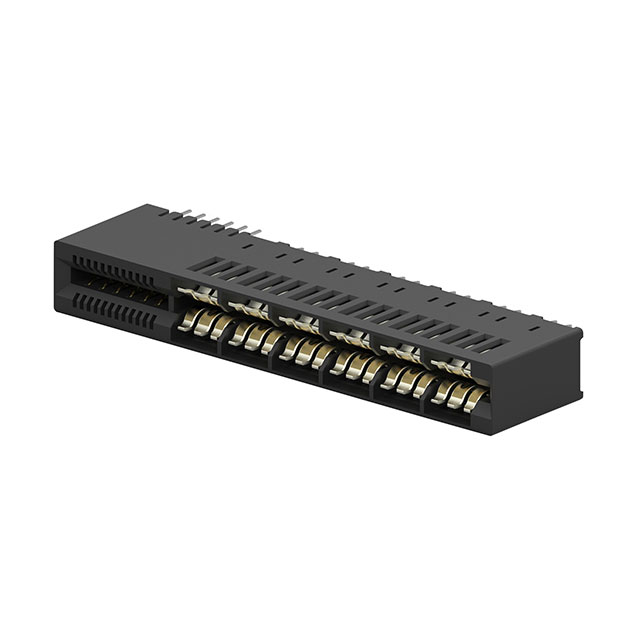

The TE Connectivity AMP Connectors part number 2214913-4 is a MULTI-BEAM CE Series card edge connector designed for high-density applications. It features a dual-side configuration with 36 total contacts, comprising 12 power and 24 signal positions. The connector utilizes a press-fit termination method for through-hole mounting on the PCB. Key electrical specifications include a contact spacing of 1.4 mm. The contacts are gold-plated to ensure reliable conductivity and corrosion resistance.

Edgeboard Connectors Feature Summary

• Dual-edge receptacle design accommodating both power and signal lines simultaneously
• Press-fit termination technology for secure board attachment without soldering
• Gold contact plating for enhanced durability and signal integrity

Edgeboard Connectors Applications

• Server market requirements
• High-density interconnect systems
• Power and signal distribution modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix and contact configuration against the official datasheet before procurement. Confirm that the press-fit variant matches the target PCB hole specifications. Check for RoHS compliance status and current lifecycle status, as availability may vary by region. Ensure the dual-edge orientation aligns with the mechanical assembly constraints of the host system.

Edgeboard Connectors Selection Notes

Select this component when high power and signal density are required in a compact form factor. The 1.4 mm pitch allows for increased contact count within limited board areas. Consider the press-fit installation method if reworkability or thermal stress reduction during assembly is a priority. Validate that the 36-contact capacity meets the system's voltage and current distribution needs.

Edgeboard Connectors Part Context

This component belongs to the MULTI-BEAM CE Series, which is engineered to address the increasing demands for power and signal density in modern server infrastructure. The series represents a next-generation solution for card edge connections, offering improved performance over standard connectors. It is specifically tailored for applications requiring robust electrical connections in space-constrained environments.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Due to the proprietary nature of the MULTI-BEAM CE series geometry and press-fit specifications, direct replacements may require mechanical redesign. Consult TE Connectivity technical support for potential alternative solutions if this specific part is unavailable.
