2214913-7

Edgeboard Connectors Overview

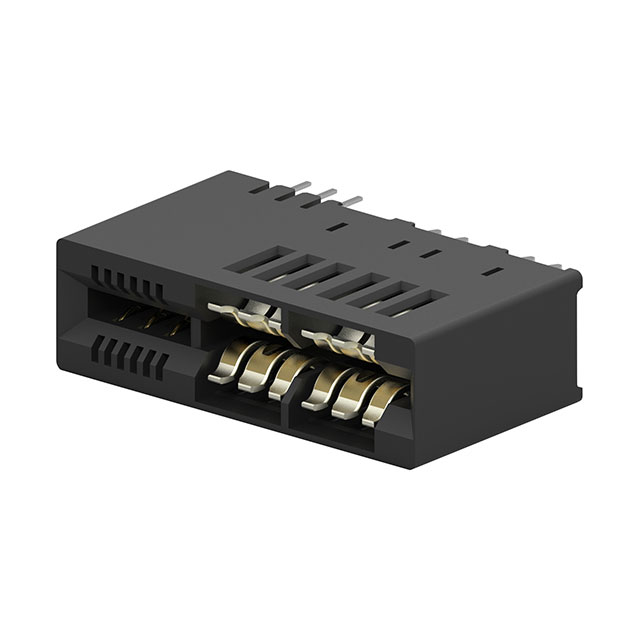

The TE Connectivity AMP Connectors part number 2214913-7 is a dual-edge female connector designed for board-to-board or backplane applications. It features 16 positions with gold-plated contacts to ensure reliable signal transmission and low contact resistance. The connector utilizes a non-specified dual-edge configuration, suitable for high-density interconnect requirements in electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure mating
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• 16-position layout optimized for compact board integration

Edgeboard Connectors Applications

• High-density electronic assembly interconnects
• Backplane connection systems
• Board-to-board signal transmission modules

Edgeboard Connectors Procurement Notes

Verify the specific mating partner requirements before procurement, as the dual-edge design necessitates compatible counterpart connectors. Confirm that the gold plating specification meets the environmental and durability standards required for the intended application environment. Ensure storage conditions prevent contamination of the contact surfaces prior to installation.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female interface is required for 16-position connections. The gold plating makes it suitable for environments where oxidation resistance is critical. Consider the physical dimensions and mounting constraints to ensure compatibility with the target PCB layout and housing structures.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP Connectors portfolio, specializing in high-reliability interconnect solutions. The 2214913-7 model represents a specialized edge connector variant, distinct from standard pin headers or socket strips, focusing on vertical or horizontal edge mating configurations for robust system integration.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical and electrical compatibility if considering alternative manufacturers.
