2214934-3

Edgeboard Connectors Overview

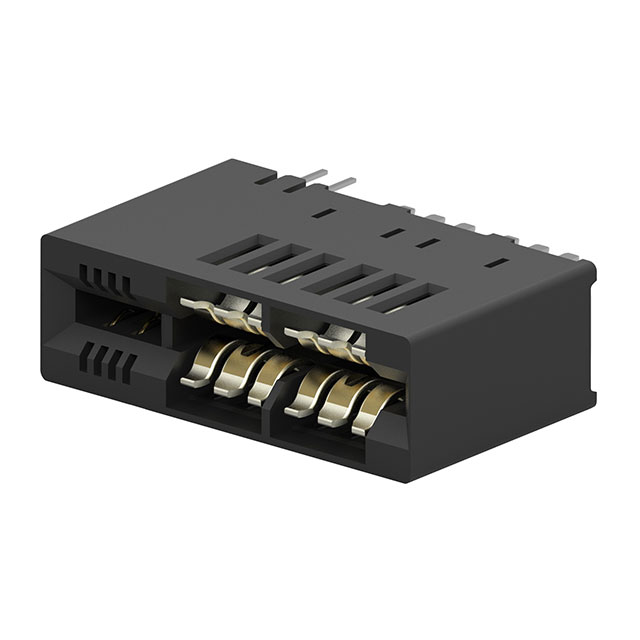

The TE Connectivity AMP Connectors part number 2214934-3 is a dual-sided card edge connector designed for high-density signal transmission. It features twelve positions arranged in a dual female configuration, accommodating standard PCB thicknesses with gold-plated contacts to ensure reliable conductivity and corrosion resistance. The component utilizes a MULTI-BEAM CE series design, offering robust mechanical retention and electrical stability for demanding electronic applications.

Edgeboard Connectors Feature Summary

• Dual-sided contact configuration for enhanced signal density
• Gold-plated contacts for superior conductivity and durability
• Female gender design compatible with standard card edge PCBs

Edgeboard Connectors Applications

• High-density backplane interconnect systems
• Industrial control module signal routing
• Telecommunications equipment board-to-board connections

Edgeboard Connectors Procurement Notes

Verify the current lifecycle status before ordering, as this component may be discontinued or subject to limited availability through authorized distributors. Confirm that the specific packaging format meets production requirements. Ensure compatibility with existing PCB footprint designs and mating card edge specifications to prevent integration issues during assembly.

Edgeboard Connectors Selection Notes

Select this connector when dual-sided signal integrity and gold plating are required for harsh environments. Evaluate the twelve-position count against system pinout needs. Consider the MULTI-BEAM CE series mechanical properties for insertion force and retention strength compared to single-sided alternatives.

Edgeboard Connectors Part Context

This component belongs to the MULTI-BEAM CE series of card edge connectors from TE Connectivity AMP Connectors. It represents a specialized solution for applications requiring high pin counts in compact footprints. The series is engineered for reliability in industrial and telecommunications sectors where consistent electrical performance is critical.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify if generic equivalents meet the specific gold plating and dual-sided requirements.
