2216-10C00R2U

Overview

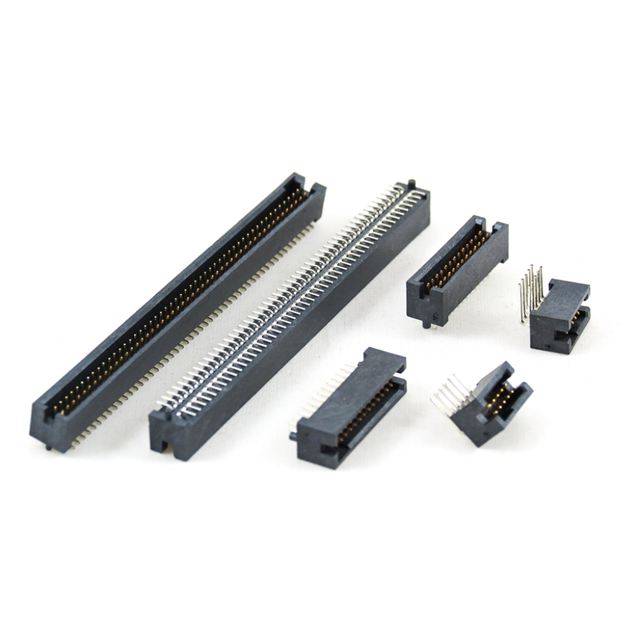

The Oupiin 2216-10C00R2U is a male box header connector featuring 10 contacts arranged in a single row. It utilizes a 0.050-inch (1.27mm) pitch for both mating and row spacing. The component employs a right-angle orientation with through-hole termination style, designed for secure PCB connections.

Feature Summary

• Right-angle configuration for compact vertical board integration
• Through-hole termination for robust mechanical stability
• Single-row male pin design for straightforward signal routing

Applications

• General-purpose PCB interconnections
• Compact electronic device assembly
• Signal routing in space-constrained modules

Procurement Notes

Verify the specific contact count matches the '10 position' specification during procurement. Confirm that the right-angle through-hole termination aligns with your PCB layout requirements. Ensure compatibility with standard 1.27mm pitch mating connectors to maintain reliable electrical performance.

Selection Notes

Select this part when a low-profile, right-angle connection is required for ten signals. The through-hole mounting offers superior mechanical strength compared to surface mount alternatives. Consider the 1.27mm pitch constraint to ensure alignment with existing board designs and mating hardware.

Part Context

This component belongs to the Oupiin 2216 series of box headers, which are engineered for secure and durable PCB connections. The series provides stable electrical performance and proven durability, making it suitable for various industrial and commercial applications requiring reliable interconnectivity.

Replacement Considerations

Compatible substitutes include other 1.27mm pitch, 10-position, right-angle male headers from the same manufacturer or third-party suppliers. Ensure exact matching of row count, termination type, and orientation before substitution.
