Edgeboard Connectors Overview

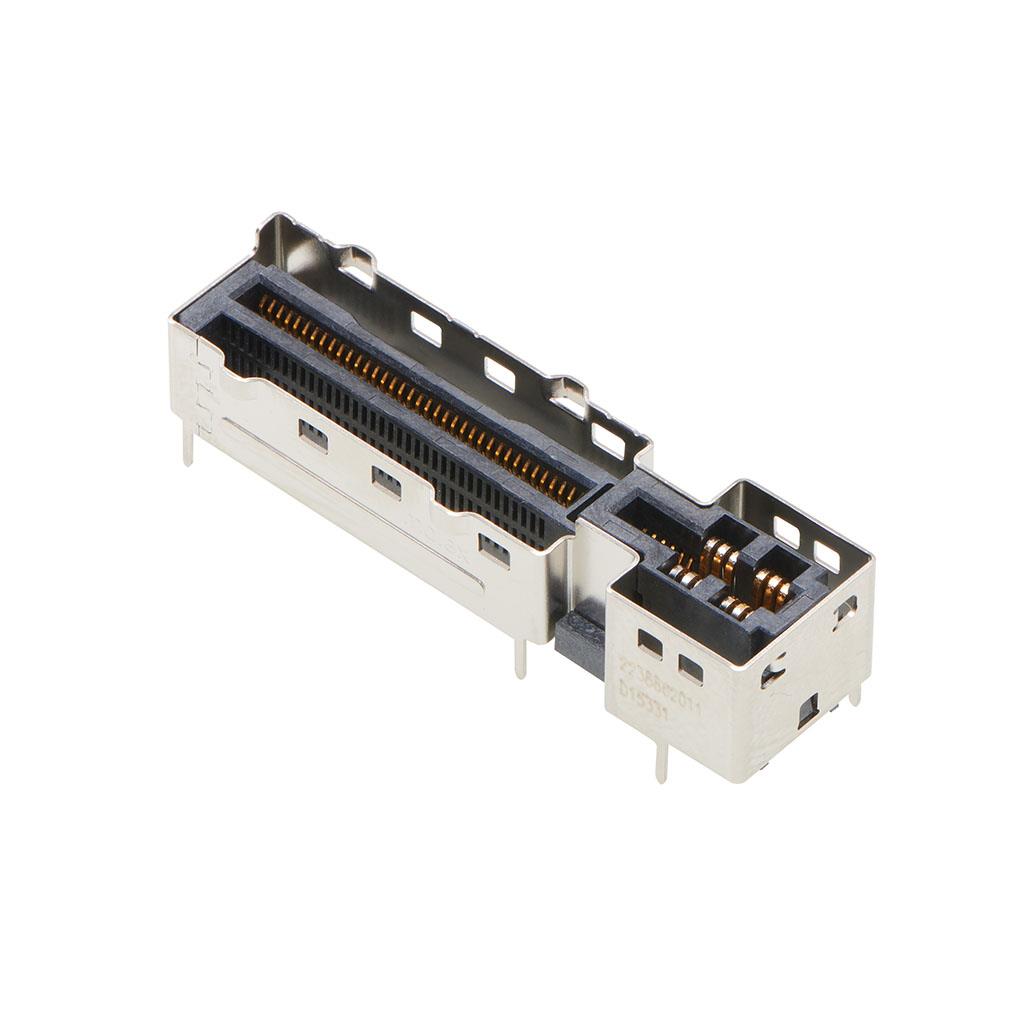

The Molex 223886-2011 is a Multi-Trak I/O connector designed for high-speed data transmission. It supports PCIe Gen 5 applications and features an 8x74 circuit configuration, totaling 74 positions. The component utilizes a shell leg length of 2.20mm and includes a dust cap for protection. This female connector is engineered for reliable signal integrity in demanding server and storage environments.

Edgeboard Connectors Feature Summary

• Supports PCIe Gen 5 high-speed data transmission standards
• Features a robust 8x74 circuit configuration for extensive connectivity
• Includes an integrated dust cap to protect contacts from contamination

Edgeboard Connectors Applications

• Server backplane interconnects
• Storage area network (SAN) systems
• High-performance computing hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required mating connectors and cable assemblies. Confirm that the 2.20mm shell leg length meets the mechanical constraints of the target chassis design. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Edgeboard Connectors Selection Notes

Select this connector when designing systems requiring PCIe Gen 5 performance levels. Ensure the mating interface matches the 74-position requirement. Consider the mechanical stability provided by the specific shell leg length during board-to-board or cable-to-board integration.

Edgeboard Connectors Part Context

This part belongs to the Multi-Trak series, which focuses on high-density I/O solutions. It is distinct from standard power connectors or low-speed signal headers. The design prioritizes signal integrity for next-generation peripheral component interconnect standards.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the exact 74-position count, Gen 5 specification, and mechanical dimensions.
