Product Detailed Parameters
- Description：PCB SOCKET, 1.27MM PITCH, 2 ROW
- Series：2242
- Mfr：Oupiin
- Package：Tube
- Connector Type：Socket
- Contact Type：Female Socket
- Style：Board to Board
- Number of Positions：14
- Number of Positions Loaded：All
- Pitch - Mating：0.050" (1.27mm)
- Number of Rows：2
- Row Spacing - Mating：0.050" (1.27mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Insulation Color：Black
- Insulation Height：0.177" (4.50mm)
- Contact Length - Post：0.120" (3.05mm)
- Operating Temperature：-65°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：1A
- Voltage Rating：-
Download product information
Overview

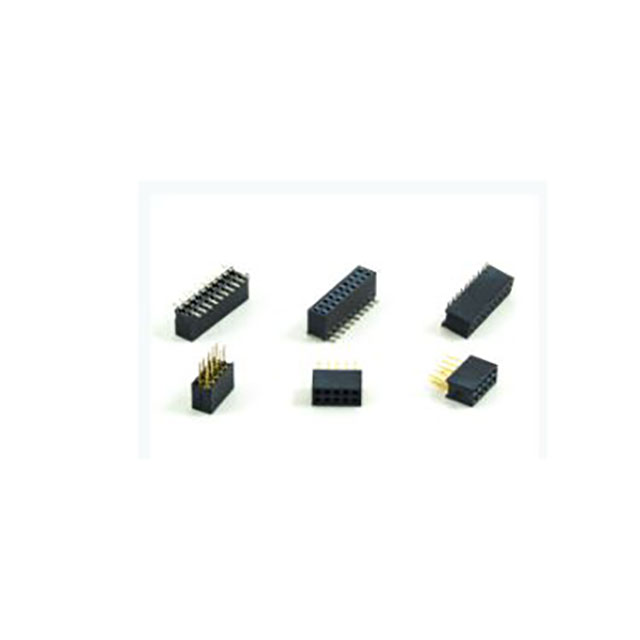

The Oupiin 2242-2X07G00S1U is a PCB socket connector featuring a 1.27mm pitch and two rows of contacts. It is designed for surface mount or through-hole applications, providing reliable electrical interconnection in compact electronic assemblies.
Feature Summary
- Dual-row configuration for increased contact density
- Standardized 1.27mm pin spacing for compatibility
- RoHS compliant construction for environmental safety
Applications
- Consumer electronics internal connections
- Industrial control board interfaces
- Communication equipment signal routing
Procurement Notes
Verify the specific datasheet revision to confirm terminal type and mounting orientation. Ensure the selected variant matches the required PCB footprint and row count. Cross-reference the manufacturer's official documentation for precise mechanical dimensions and soldering profile requirements before integration.
Selection Notes
Select this component when a dual-row female socket with a 1.27mm pitch is required. Confirm that the mating header aligns with the specified row configuration. Evaluate space constraints against the connector's overall height and width to ensure proper fit within the enclosure design.
Part Context
This part belongs to Oupiin's standard connector portfolio, manufactured by OUPIIN ENTERPRISE CO.,LTD. The company specializes in high-volume connector production with ISO certifications, focusing on communication and industrial sectors. This specific model represents a common interconnect solution within their broader catalog.
Replacement Considerations
No direct public substitute part numbers are confirmed in the provided documentation. Verify mechanical compatibility and electrical ratings if considering alternative manufacturers' equivalents.
