Product Detailed Parameters
- Description：PCB SOCKET, SINGLE ROW, 6 PIN, S
- Series：2244
- Mfr：Oupiin
- Package：Tube
- Connector Type：Socket
- Contact Type：Female Socket
- Style：Board to Board
- Number of Positions：6
- Number of Positions Loaded：All
- Pitch - Mating：0.050" (1.27mm)
- Number of Rows：1
- Row Spacing - Mating：-
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Insulation Color：-
- Insulation Height：0.181" (4.60mm)
- Contact Length - Post：0.094" (2.40mm)
- Operating Temperature：-40°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：1A
- Voltage Rating：-
Download product information
Overview

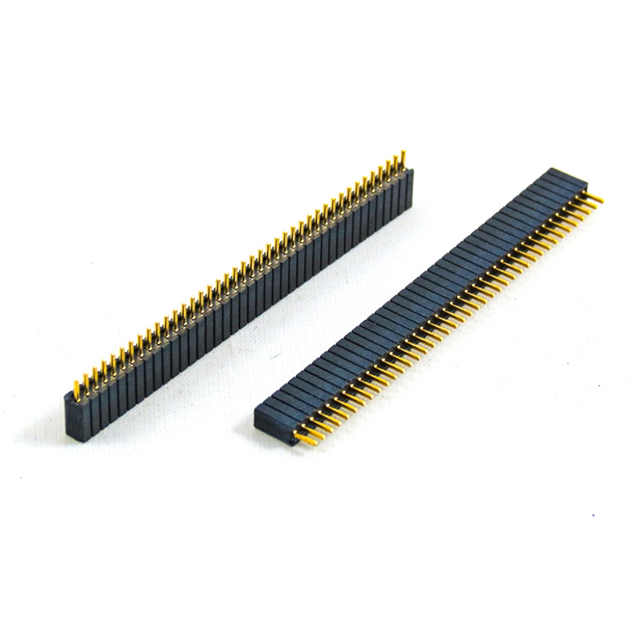

The Oupiin 2244-1X06G00SU is a single-row female board connector socket featuring six contacts with a 0.05-inch (1.27mm) pitch. Designed for through-hole mounting, it utilizes solder terminals and includes locking mechanisms for secure attachment. The component operates with a dielectric withstand voltage of 500VAC and maintains an insulation resistance of 1,000,000,000 ohms. Contact resistance is specified at 20 milliohms, ensuring reliable signal transmission in compact electronic assemblies.
Feature Summary
- Single-row female socket configuration for direct PCB integration
- Through-hole solder termination with integrated locking features
- Low-profile housing design optimized for space-constrained applications
Applications
- Communication equipment interconnections
- Industrial manufacturing control systems
- Computer peripheral circuit boards
Procurement Notes
Verify the specific suffix 'SU' against official Oupiin documentation to confirm plating specifications and terminal type accuracy. Ensure that the single-row 6-pin configuration matches the target PCB footprint requirements. Cross-reference the 0.05-inch pitch dimension with mating header components to guarantee mechanical compatibility and proper electrical engagement during assembly processes.
Selection Notes
Select this component when a low-profile, single-row interface is required for 1.27mm pitch applications. The straight orientation and through-hole mounting method suit standard vertical PCB layouts. Consider the 500VAC rating and 20mΩ contact resistance for general signal integrity needs within computer and industrial sectors where UL and CSA safety certifications are mandated.
Part Context
This part belongs to the Oupiin 2244 series of board connectors, manufactured by OUPIIN ENTERPRISE CO.,LTD. The company utilizes automated production facilities in Taiwan and China to produce high-volume connectors. Products from this manufacturer are widely used in communication, computer, and industrial applications, adhering to ISO 9001 quality standards and international safety regulations.
Replacement Considerations
Publicly confirmed substitute part numbers for this specific model are not available in the provided documentation. Verify mechanical dimensions and electrical ratings against alternative single-row 6-pin sockets before considering cross-referencing with other manufacturers' offerings.
