22FP-183L

Fixed Inductors Overview

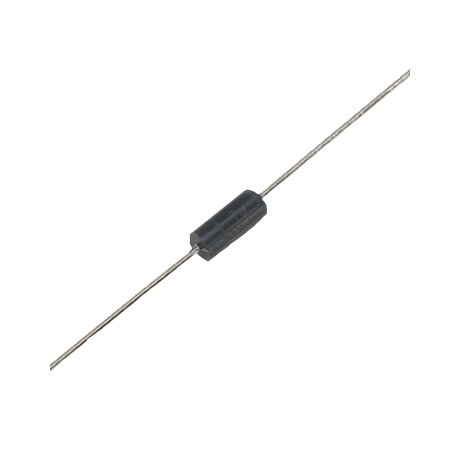

The 22FP-183L is a molded high current axial lead inductor manufactured by Gowanda Electronics. It features an unshielded design with an inductance of 180 µH and a maximum DC resistance of 1.37 Ohms. The component supports a maximum current rating of 530 mA. Physically, it weighs 1.8 grams and measures 14.22 × 5.46 × 5.46 mm. This part is engineered for high reliability in demanding applications.

Fixed Inductors Feature Summary

• Molded construction designed for high current handling capabilities
• Axial lead configuration suitable for through-hole mounting
• Unshielded core design to minimize size constraints

Fixed Inductors Applications

• High reliability electronic assemblies
• Demanding industrial applications
• Power supply filtering circuits

Fixed Inductors Procurement Notes

Verify authenticity by inspecting physical markings and packaging integrity. Confirm electrical performance against official datasheet specifications. Ensure the supplier provides traceability documentation to guarantee original Gowanda Electronics components are delivered without substitution or refurbishment.

Fixed Inductors Selection Notes

Select this component when a 180 µH inductance value is required with a 530 mA current limit. The axial lead format is appropriate for PCB layouts requiring specific spacing. Consider the unshielded nature for electromagnetic interference sensitivity in the target circuit environment.

Fixed Inductors Part Context

This model belongs to the 22FP series of molded high current inductors from Gowanda Electronics. The series offers various inductance values tailored for robust performance. The 22FP-183L specifically addresses needs for moderate inductance with compact axial dimensions.

Fixed Inductors Replacement Considerations

Direct substitutes include other Gowanda 22FP series parts with matching inductance and current ratings. Verify pin compatibility and thermal characteristics before swapping with generic axial inductors.
