2322260-1

Edgeboard Connectors Overview

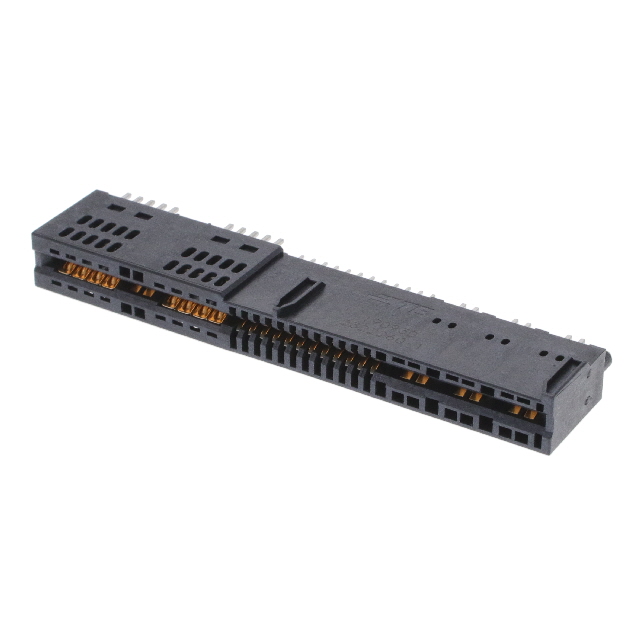

The TE Connectivity AMP Connectors model 2322260-1 is a hybrid power card edge connector assembly designed for board-to-board applications. It features 34 total positions, comprising 10 power and 24 signal contacts, with an 8.24 mm centerline pitch. The component utilizes a through-hole solder termination method and is configured as a socket receptacle.

Edgeboard Connectors Feature Summary

• Integrates power and signal transmission within a single hybrid receptacle assembly
• Provides high-density connectivity via a 34-position configuration
• Utilizes through-hole solder termination for secure board mounting

Edgeboard Connectors Applications

• Board-to-board interconnects requiring combined power and signal routing
• High-density electronic systems utilizing card edge interface standards
• Industrial equipment needing robust hybrid power connector solutions

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version to confirm contact plating specifications and mating force requirements. Ensure the receiving board stack-up thickness aligns with the connector's retention capabilities. Confirm that the 8.24 mm pitch matches the target PCB layout design constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single hybrid solution is required to replace separate power and signal connectors. The 8.24 mm pitch dictates specific PCB spacing requirements. Consider the through-hole soldering process compatibility during the design phase to ensure reliable mechanical and electrical connections.

Edgeboard Connectors Part Context

This part belongs to the TE Connectivity AMP Brand standard card edge connector family. It serves as a specialized hybrid variant designed to consolidate multiple connection types into one compact footprint, differing from standard single-function card edge connectors by its mixed power and signal position arrangement.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
