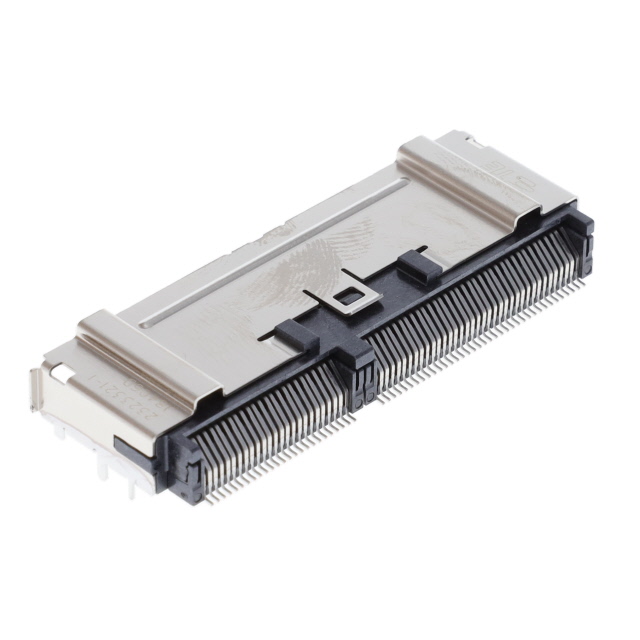

2323321-1 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN EDGE DUAL FML 124POS 0.024. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 2323321-1
- Description：CONN EDGE DUAL FML 124POS 0.024
- Series：Sliver
- Mfr：TE Connectivity AMP Connectors
- Package：Tape & Reel (TR),Cut Tape (CT),Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：37; 25
- Number of Positions：124
- Card Thickness：-
- Number of Rows：2
- Pitch：0.024" (0.60mm)
- Read Out：Dual
- Features：Board Guide, Organizer, Rails
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：-
- Contact Type：-
- Color：Black
- Flange Feature：-
- Operating Temperature：-55°C ~ 85°C
Edgeboard Connectors datasheet and documents for 2323321-1
Edgeboard Connectors Overview
The TE Connectivity AMP Connectors model 2323321-1 is a dual-edge card edge connector belonging to the Sliver series. It features 124 positions with female contacts and a 0.024 inch (0.60mm) pitch. The connector utilizes gold-plated copper alloy contacts and an LCP insulator, rated for operation between -55°C and 85°C. Designed for surface mount installation at a right angle, it includes board guide features for precise alignment.
Edgeboard Connectors Feature Summary
- Dual-edge configuration for high-density signal transmission
- Gold-plated contacts ensure reliable conductivity
- LCP insulation provides thermal stability
- Integrated board guide aids in accurate mating
Edgeboard Connectors Applications
- High-speed data interconnect systems
- Industrial control modules
- Telecommunications equipment backplanes
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official TE Connectivity documentation to confirm exact contact plating thickness and material specifications. Ensure compatibility with existing PCB footprint dimensions and reflow soldering profiles before integration into production lines.
Edgeboard Connectors Selection Notes
Select this component when high-density routing requires a dual-edge interface with a 0.60mm pitch. The right-angle surface mount design suits space-constrained applications needing robust mechanical retention and precise board alignment during assembly processes.
Edgeboard Connectors Part Context
This part belongs to the Sliver series of card edge connectors, designed for demanding electronic environments. It serves as a critical interface component within larger connector ecosystems, facilitating secure electrical connections between rigid printed circuit boards and mating counterparts.
Edgeboard Connectors Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternatives. Generic equivalents may lack the specific LCP material properties or gold plating standards required for this application.
Edgeboard Connectors FAQ
What is the contact material used in this connector?
The contacts are manufactured from copper alloy.
Is this connector suitable for high-temperature environments?
Yes, it operates reliably within a temperature range of -55°C to 85°C.
