Edgeboard Connectors Overview

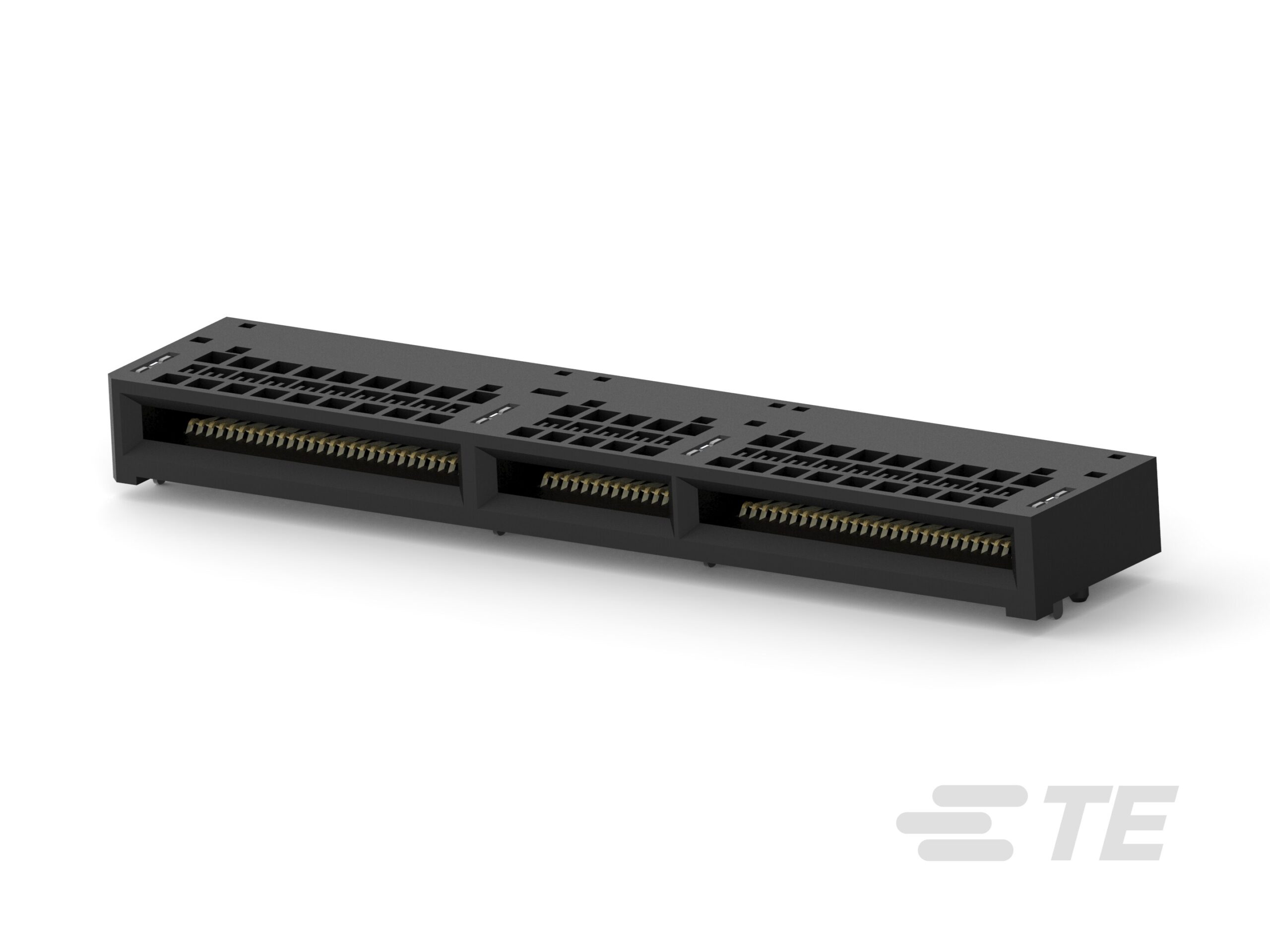

The TE Connectivity AMP Connectors part number 2327670-3 is a right-angle edge board connector assembly belonging to the Sliver 2.0 series. It features 140 positions arranged in a dual configuration with a 0.024-inch (0.60mm) pitch. The contacts are gold-plated copper alloy, designed for surface-mount termination via soldering. The housing is black liquid crystal polymer (LCP), supporting an operating temperature range of -55°C to +85°C.

Edgeboard Connectors Feature Summary

• Right-angle surface mount design for compact PCB integration
• Dual-edge female contact configuration for high-density signaling
• Gold-plated contacts ensuring reliable electrical performance
• Liquid crystal polymer insulation for thermal stability

Edgeboard Connectors Applications

• High-speed data transmission modules
• Telecommunications infrastructure equipment
• Industrial control systems requiring robust edge connections

Edgeboard Connectors Procurement Notes

Verify that the specific order matches the 140-position dual-edge specification and right-angle orientation. Confirm RoHS3 compliance status if required by project regulations. Ensure the receiving facility has appropriate handling procedures for surface-mount components to prevent mechanical damage during storage and installation.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, dual-edge female connector with a 0.60mm pitch is required. Compare against similar Sliver series parts to ensure compatibility with existing PCB footprint designs. Verify that the solder termination method aligns with the manufacturing process capabilities and thermal profiles available.

Edgeboard Connectors Part Context

This connector is part of the broader Sliver 2.0 family from TE Connectivity, which focuses on high-density interconnect solutions. It shares design characteristics with other variants in the 2327670 series, differing primarily in position count and orientation. The series supports modern electronic applications demanding reliable signal integrity in space-constrained environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include part numbers such as 2327670-2, which offers identical specifications but may differ in packaging or minor mechanical attributes. Cross-referencing official TE Connectivity documentation is essential to confirm pinout and dimensional compatibility before substitution.
