Edgeboard Connectors Overview

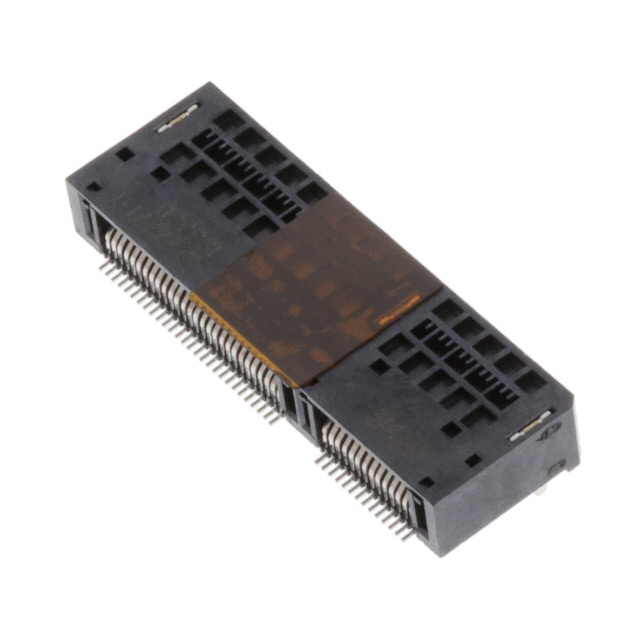

The TE Connectivity AMP Connectors part number 2327671-1 is a dual-edge female card edge connector belonging to the Sliver 2.0 series. It features 84 positions arranged in two rows with a 0.024-inch (0.60mm) pitch. Designed for surface mount installation at a right angle, the connector utilizes gold-plated copper alloy contacts and a black liquid crystal polymer (LCP) insulator. It supports standard board thicknesses of 0.062 inches (1.57mm) and operates within a temperature range of -55°C to +85°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for non-specified double-sided circuit boards
• Surface mount right-angle mounting style with solder retention capabilities
• Gold-plated copper alloy contacts ensuring reliable signal transmission

Edgeboard Connectors Applications

• High-density backplane interconnections
• Server and storage system motherboard connections
• Telecommunications equipment interface modules

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized TE Connectivity distributors or certified partners. Confirm that the received parts match the specific 2327671-1 designation and series requirements. Ensure compliance with relevant environmental standards such as RoHS3 before final integration into production assemblies.

Edgeboard Connectors Selection Notes

Select this component when high-density routing is required on double-sided PCBs. The right-angle surface mount design facilitates compact vertical stacking. Verify that the target application requires a 0.60mm pitch and can accommodate the specified operating temperature range and board thickness constraints effectively.

Edgeboard Connectors Part Context

This connector is part of the Sliver 2.0 family, engineered for small form factor applications including SFF-TA-1002 standards. The series provides enhanced performance for modern high-speed data interfaces while maintaining compatibility with established manufacturing processes for surface mount technology assembly lines.

Edgeboard Connectors Replacement Considerations

Consult official TE Connectivity documentation for direct substitute part numbers. Evaluate mechanical footprint compatibility and electrical specifications before considering alternative components from other manufacturers.
