2327671-2

Edgeboard Connectors Overview

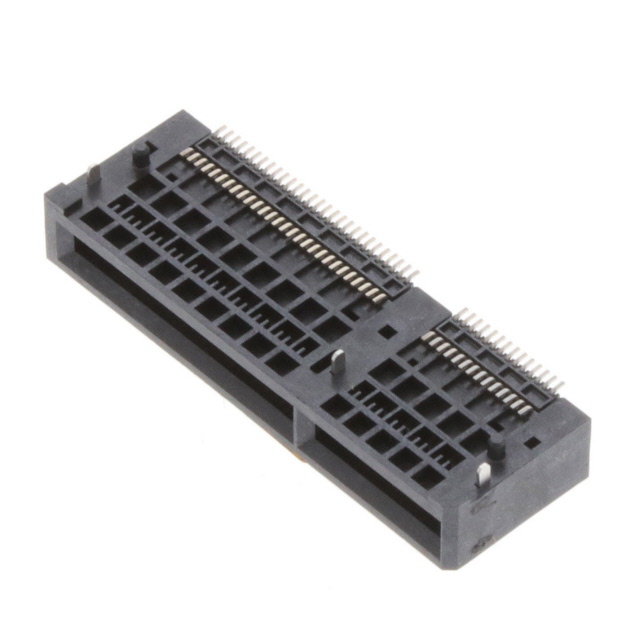

The TE Connectivity AMP Connectors 2327671-2 is an 84-position female card edge connector designed for board-to-board or card-to-board connections. It features a dual-edge configuration with two rows of contacts, providing a total of 56 positions per row (28 positions per bay). The connector utilizes a 0.024-inch (0.60mm) pitch and employs gold-plated copper alloy contacts for reliable signal transmission. The housing is constructed from black liquid crystal polymer (LCP), ensuring stability in demanding environments.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure card insertion
• Gold-plated copper alloy contacts ensure corrosion resistance and conductivity
• Liquid crystal polymer (LCP) insulation provides thermal stability
• Surface-mount compatible design facilitates automated assembly

Edgeboard Connectors Applications

• Board-to-board interconnections
• Card-to-board connections
• High-density electronic assemblies
• Telecommunications equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm packaging type, such as tape and reel quantities. Ensure compatibility with existing PCB footprint dimensions and soldering profiles. Confirm that the selected variant meets all required environmental certifications and moisture sensitivity levels for your manufacturing process.

Edgeboard Connectors Selection Notes

Select this component when a high-density 84-position interface is required. The 0.60mm pitch allows for compact layouts compared to larger spacing options. Consider the LCP material properties for thermal management needs. Verify that the dual-edge design aligns with the mechanical constraints of the mating card slot.

Edgeboard Connectors Part Context

This part belongs to the Sliver 2.0 series of connectors, which are engineered for high-reliability applications. The series is characterized by its slim profile and robust contact retention. It serves as a critical interconnect solution in systems requiring dense pin counts within limited spatial boundaries.

Edgeboard Connectors Replacement Considerations

Direct substitutes include the 2327678-7 and 2327670-2, which share similar series characteristics and positioning configurations. Verify dimensional tolerances and contact plating specifications before substitution to ensure mechanical fit and electrical performance continuity.
