2327671-3

Edgeboard Connectors Overview

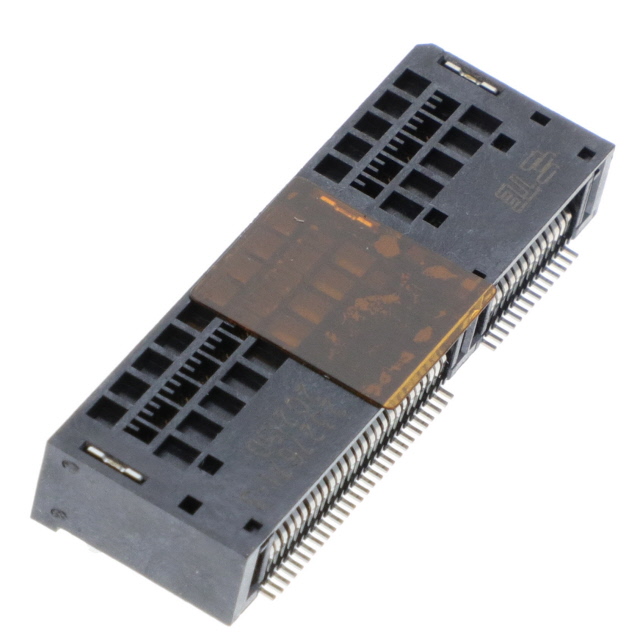

The TE Connectivity AMP Connectors part number 2327671-3 is a standard card edge connector receptacle assembly belonging to the Sliver 2.0 series. It features a right-angle surface mount configuration with 84 positions and a 0.6 mm pitch. The contacts are made of copper alloy with gold plating, rated for 1.1 A current. The housing utilizes liquid crystal polymer (LCP) material, supporting an operating temperature range from -55°C to +85°C.

Edgeboard Connectors Feature Summary

• Right-angle surface mount design for compact PCB integration
• Gold-plated copper alloy contacts ensuring reliable conductivity
• Liquid crystal polymer housing for thermal stability

Edgeboard Connectors Applications

• Internal I/O connections in high-density systems
• SFF-TA-1002 compliant interface implementations
• Server and storage backplane assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix and revision level against the official TE Connectivity datasheet to ensure compatibility with mating connectors. Confirm RoHS compliance status and moisture sensitivity classification prior to ordering. Cross-reference the manufacturer part number directly with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, dual-sided card edge receptacle with 84 positions is required. Ensure the PCB layout accommodates the 0.6 mm pitch and right-angle termination. Verify that the LCP housing material meets the thermal requirements of the target application environment.

Edgeboard Connectors Part Context

This component is part of the Sliver 2.0 family, designed for high-density interconnects. It serves as a receptacle for mating with corresponding card edge connectors in internal I/O applications. The series emphasizes low temperature rise and power loss characteristics suitable for modern electronic systems.

Edgeboard Connectors Replacement Considerations

Consult the official TE Connectivity cross-reference guide for verified substitute part numbers. Do not assume interchangeability with other series without verifying pinout, pitch, and mechanical dimensions.
