2327672-1

Edgeboard Connectors Overview

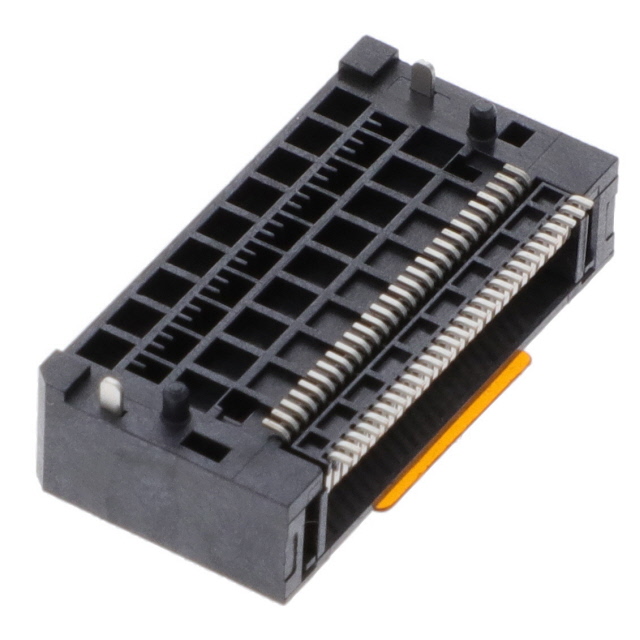

The TE Connectivity AMP Connectors part number 2327672-1 is a standard card edge connector receptacle assembly. It features a right-angle surface mount design with 56 positions arranged in two rows. The connector utilizes a 0.6 mm pitch and accepts non-specified dual-edge cards with a thickness of 0.062 inches (1.57 mm). Contacts are made of copper alloy with gold plating, rated for 1.1 A current. The housing is constructed from liquid crystal polymer (LCP), black in color, supporting an operating temperature range of -55°C to +85°C.

Edgeboard Connectors Feature Summary

• Right-angle surface mount configuration with mounting pegs for secure PCB placement
• Dual-edge contact interface designed for robust signal transmission
• Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance
• Liquid crystal polymer insulation provides thermal stability and mechanical strength

Edgeboard Connectors Applications

• High-density electronic interconnect systems requiring right-angle routing
• Industrial control modules utilizing standard dual-edge card interfaces
• Telecommunications equipment with space-constrained board layouts
• Automotive electronics assemblies demanding stable connection under vibration

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact packaging and termination specifications. Ensure compatibility with the target printed circuit board dimensions and mounting hole patterns. Confirm that the selected variant meets all required environmental certifications and RoHS compliance standards for the intended deployment region.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, dual-edge card edge receptacle with a 0.6 mm pitch is required. The 56-position count suits applications needing moderate density without excessive board real estate. Verify that the 1.1 A current rating and 85°C maximum operating temperature align with the system's electrical and thermal constraints before finalizing the design.

Edgeboard Connectors Part Context

This component belongs to the Sliver 2.0 series of high-performance card edge connectors by TE Connectivity. The series is recognized for its reliability and adoption in industry standards such as SFF-TA-1002. The 2327672-1 specifically represents the right-angle variant within this family, offering distinct mechanical advantages over vertical counterparts for specific board stacking requirements.

Edgeboard Connectors Replacement Considerations

Consult the official TE Connectivity cross-reference guide for verified substitute part numbers. Direct replacements must maintain identical 0.6 mm pitch, 56-position count, and right-angle orientation to ensure mechanical fit and electrical continuity without redesigning the host PCB.
